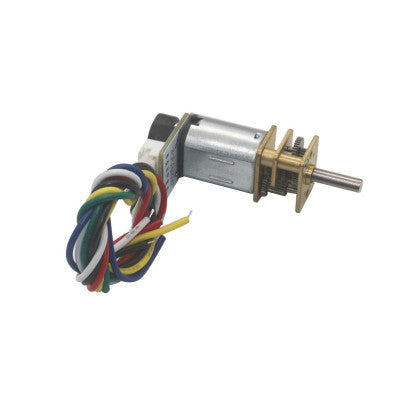

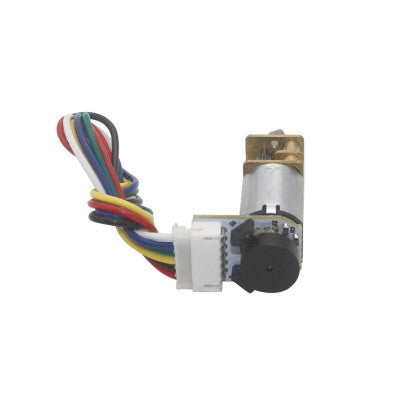

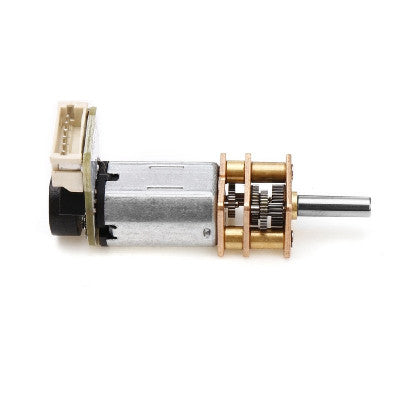

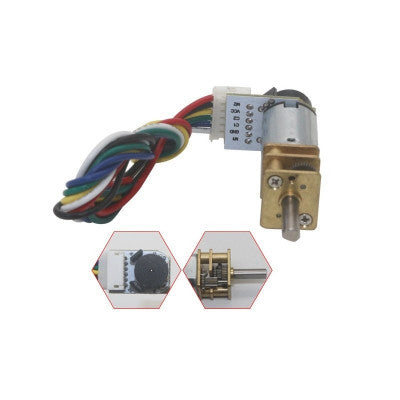

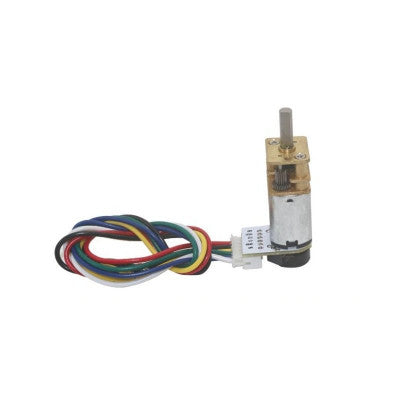

N20 3V 50RPM Micro Metal Gear Motor With Encoder
Compact and efficient motor with encoder for robotics projects.
- Model: GA12 N20
- No Load Current (mA): 10 mA
- No Load Speed (RPM): 50
- Rated Speed (RPM): 40
- Rated Current (mA): 30
- Rated Torque (kg-cm): 0.20
- Stall Current (A): 1
- Stall Torque (Kg-Cm): 1.6
- Gear Ratio: 200 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Model: GA12 N20
- DC Mini Metal Gear Motor
- Lightweight and high torque
- Low RPM for precise control
These N20 3V 50RPM Micro Metal Gear Motors with Encoder are designed for optimal performance at 3V. They can operate within a voltage range, starting from as low as 0.5V. Higher voltages may impact motor lifespan. The gear motors come in various ratios, with consistent physical dimensions for easy interchangeability.
The motor dimensions are 15 x 12 x 10 mm with a gearbox length of 9 mm. It has a pulse count of 3PPR (Pulse per Revolutions) for accurate feedback. The wiring includes red and white for motor power, black for encoded power supply, yellow and green for signal feedback, and blue for encoded power ground.
Package Includes: 1 x N20 3V 50RPM Micro Metal Gear Motor With Encoder, 1 x Connector (14 cm).
* Images are for illustration only; actual product may vary.
