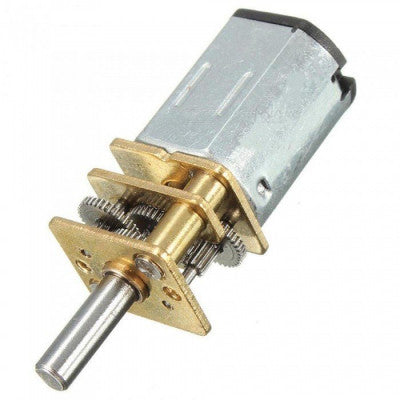

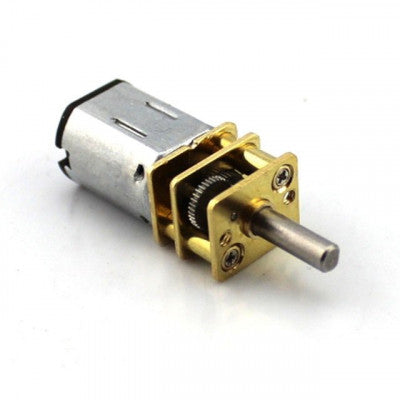

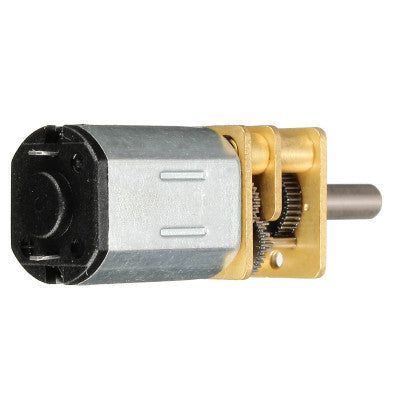

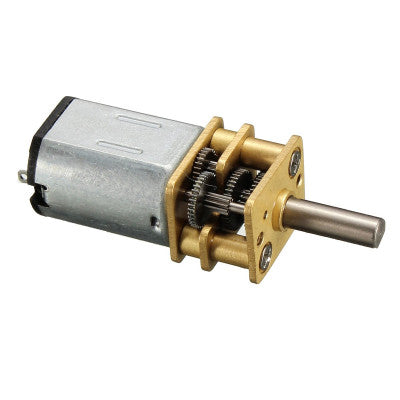

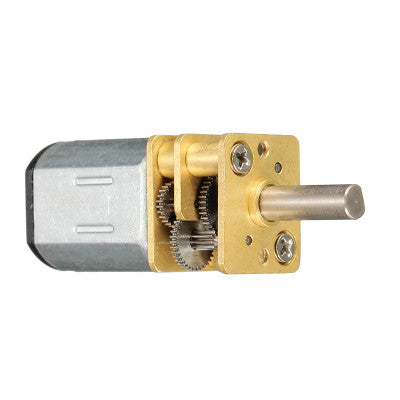

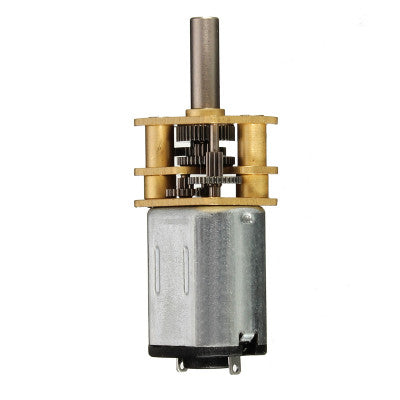

N20 3V 50 Rpm Micro Metal Gear Motor
A durable, high-torque DC motor with metal gears for various applications.
- Model No: N20-3V-50
- Motor Type: Centre Shaft DC Geared Motor
- Rated Operating Voltage (VDC): 3
- No Load Current (mA): 0.01
- Stall Current (A): 1.0
- Rated Speed (RPM): 40
- Operating Voltage (VDC): 1.5 ~ 5
- Rated Torque(kg-cm): 0.20
- Stall Torque(Kg-Cm): 1.6
- No load Speed (RPM): 50
- Gear Ratio: 200 : 1
- Shaft Type: D-type Single Side
- Motor Body Size (Diameter) (mm): 12
- Shaft Diameter (mm): 3
- Weight (gm): 10
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Features:
- Lightweight, high torque, and low RPM
- Great for replacing damaged DC geared motors
- Can be used in boats, cars, electric bicycles, fans, and home appliances
- Equipped with gearbox assembly for increased torque
This N20 Micro Gear 3V 50 RPM DC Motor is a versatile motor suitable for various applications. It is compact in size, making it ideal for small-scale projects where space is limited. The motor's metal gears ensure durability and reliability, making it a great choice for long-term use.
With a rated torque of 0.20 kg-cm and a stall torque of 1.6 kg-cm, this motor can handle high loads with ease. Whether you're building a robot or need to drive wheels efficiently, this motor is up to the task. Its excellent stall characteristics allow it to climb hills effortlessly, making it a reliable choice for different scenarios.
The motor's gearbox output shaft is D-shaped, with a length of 9mm and a diameter of 3mm. This design allows for easy mounting of wheels or other components, providing flexibility in your projects.
Package Includes: 1 x N20 3V 50 Rpm Micro Metal Gear Motor
*Images are for illustration only; actual product may vary.
