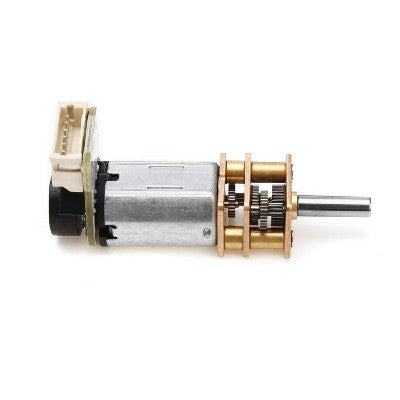

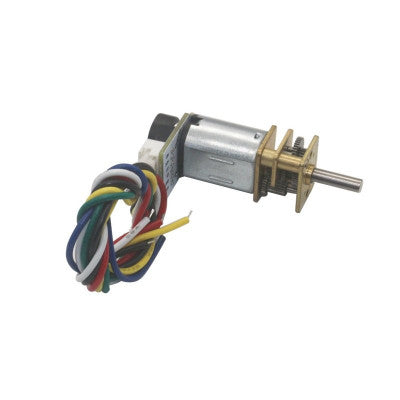

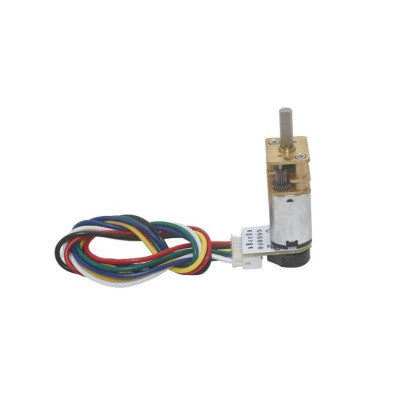

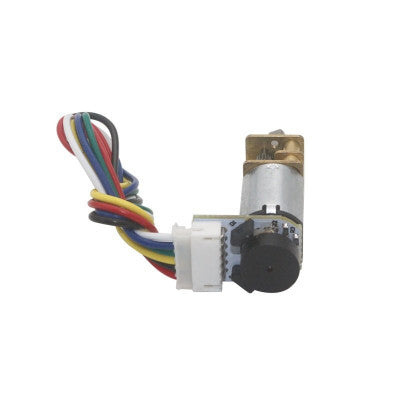

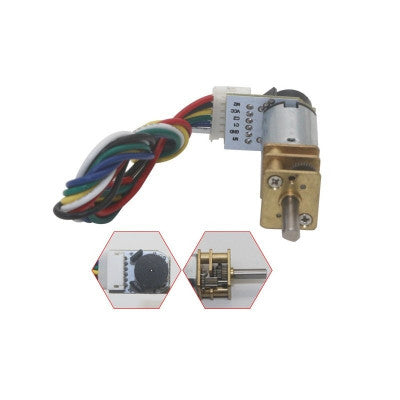

N20 3V 35RPM Micro Metal Gear Motor With Encoder
Compact and efficient motor with encoder for robotics projects.
- Model: GA12 N20
- No Load Current (mA): 10 mA
- No Load Speed (RPM): 35
- Rated Speed (RPM): 30
- Rated Current (mA): 20
- Rated Torque (kg-cm): 0.24
- Stall Current (A): 1
- Stall Torque (Kg-Cm): 2.0
- Gear Ratio: 298 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Model: GA12 N20
- DC Mini Metal Gear Motor
- Lightweight and high torque
- Low RPM for precise control
These N20 3V 35RPM Micro Metal Gear Motors are designed for optimal performance at 3V, with the ability to operate within a range of voltages. The gear ratios range from 5:1 to 1000:1, offering versatility in various applications. With a compact size and durable construction, these motors are ideal for robotics projects.
The motor dimensions remain consistent across different gear ratios, allowing for easy interchangeability based on design requirements. The motor's stall characteristics enable smooth hill climbing, and the output shaft is compatible with mounting wheels for added functionality.
How to wire:
- Red: Motor Power (Positive/Negative Rotation)
- Black: Encoded Power Supply (VCC)
- Yellow: Signal Feedback (2 signals)
- Green: Signal Feedback (2 signals)
- Blue: Encoded Power (GND)
- White: Motor Power (Positive/Negative Rotation)
Package Includes:
- 1 x N20 3V 35RPM Micro Metal Gear Motor With Encoder
- 1 x Connector (14 cm)
*Images are for illustration only; actual product may vary.
