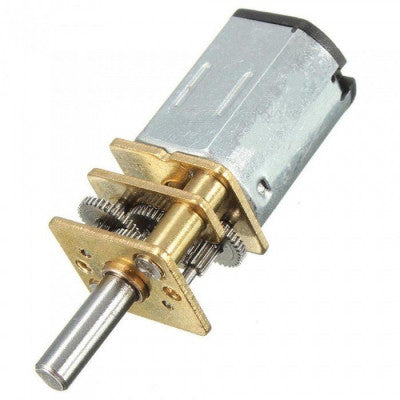

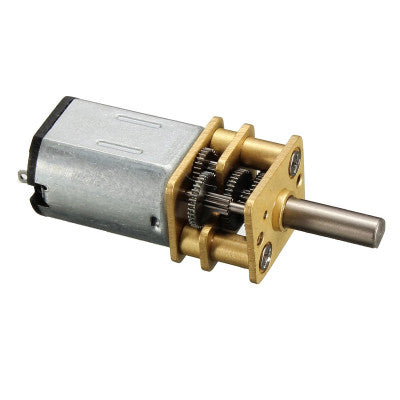

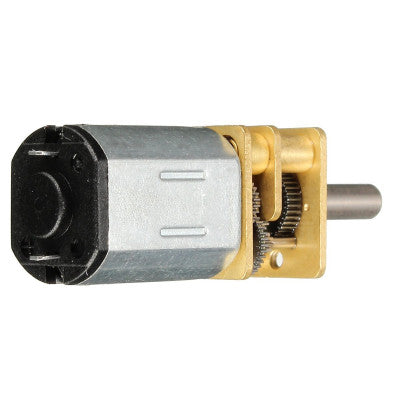

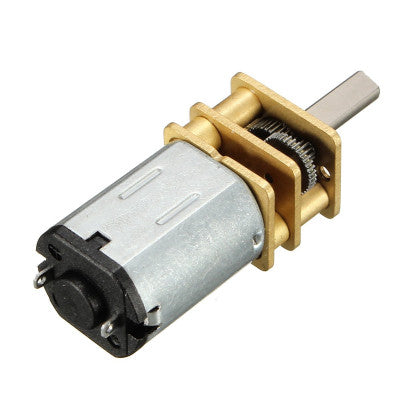

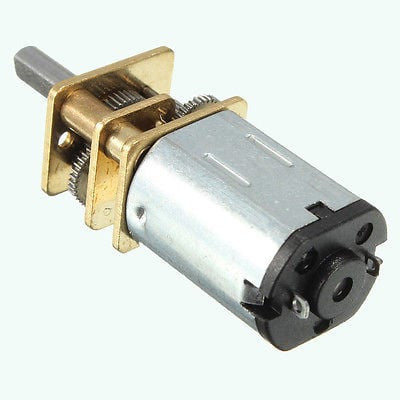

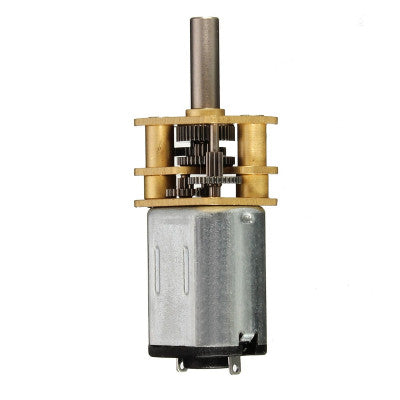

N20 3V 300 Rpm Micro Metal Gear Motor
A durable, high-torque DC motor with metal gears for various applications.
- Model No: N20-3V-300
- Motor Type: Center Shaft DC Geared Motor
- Rated Operating Voltage (VDC): 3
- No Load Current (mA): 25 ~ 45
- Stall Current (A): 0.1
- Rated Speed (RPM): 280
- Operating Voltage (VDC): 1.5 ~ 5
- Rated Torque(kg-cm): 0.06
- Stall Torque(Kg-Cm): 0.80
- No load Speed (RPM): 300
- Gear Ratio: 298 : 1
- Shaft Type: D-type
- Motor Body Size (Diameter) (mm): 12
- Shaft Diameter (mm): 3
- Weight (gm): 10
- Overall length: 35mm (top to bottom)
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Top Features:
- Lightweight and durable design
- High torque and low RPM
- Equipped with gearbox assembly for increased torque
- Small size fits in complex spaces
This N20 3V 300 Rpm Micro Metal Gear Motor is a great replacement for rusty or damaged DC geared speed reduce motors in various applications such as boats, cars, electric bicycles, fans, and home appliances. It is ideal for making robots and can easily climb hills with excellent stall characteristics. The motor's output shaft allows for easy mounting of wheels for driving high loads.
Package Includes:
- 1 x N20 3V 300 RPM Micro Metal Gear Motor
*Images are for illustration only; actual product may vary.
