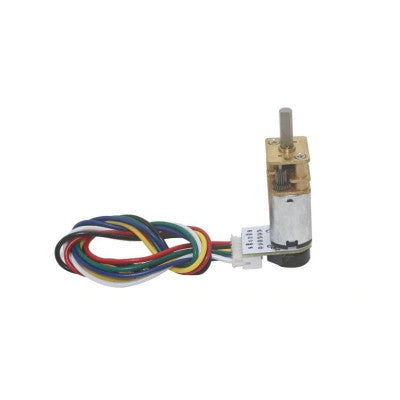

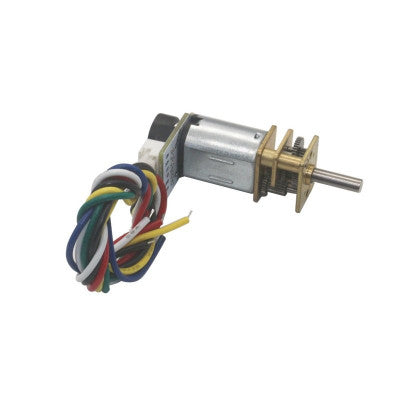

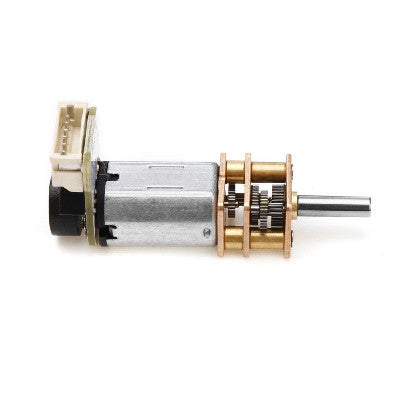

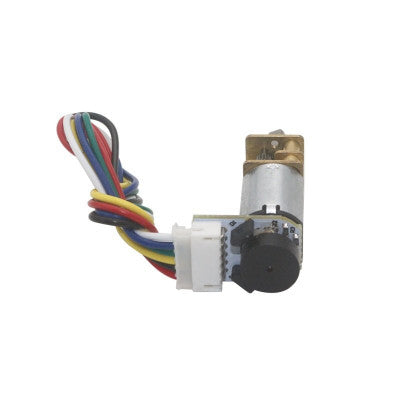

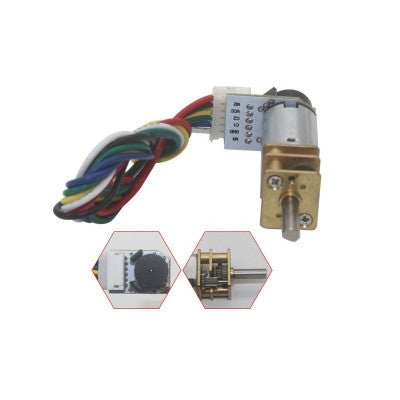

N20 150RPM Micro Metal Gear 3V DC Motor With Encoder
Compact and efficient motor with encoder for robotics projects.
- Model: GA12 N20
- No Load Current (mA): 10 mA
- No Load Speed (RPM): 150
- Rated Speed (RPM): 120
- Rated Current (mA): 30
- Rated Torque (kg-cm): 0.1
- Stall Current (A): 0.23
- Stall Torque (Kg-Cm): 0.80
- Gear Ratio: 30 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy wheel mounting on output shaft
These N20 150RPM Micro Metal Gear 3V DC Motors with Encoder are designed for optimal performance at 3V, with the ability to operate within a range of voltages. The gear ratios range from 5:1 to 1000:1, offering versatility in various applications. The motors feature excellent stall characteristics, making them suitable for tasks like climbing hills.
The motors come with detailed wiring instructions: Red for motor power, Black for encoded power supply, Yellow and Green for signal feedback, Blue for encoded power, and White for motor power exchange. The package includes 1 x N20 150RPM Micro Metal Gear 3V DC Motor with Encoder and 1 x 14 cm connector.
With a model number of GA12 N20, these motors have a compact design with dimensions that allow for easy interchangeability. The motor's specifications include a rated torque of 0.1 kg-cm and a stall torque of 0.80 kg-cm, making them suitable for various robotic applications.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
