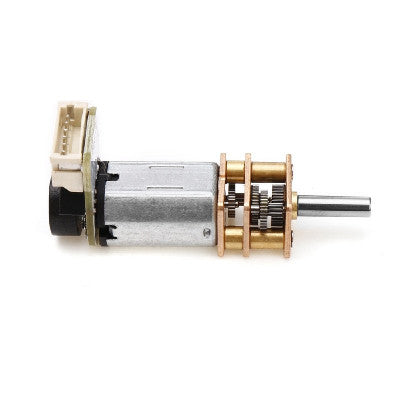

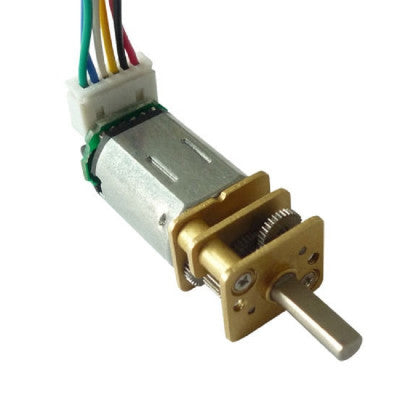

N20 12V 60RPM Micro Metal Gear Motor With Encoder
Compact and versatile motor with encoder for robotics projects.
- Model: GA12 N20
- Rated Operating Voltage (VDC): 12
- No Load Current (mA): Stall Current (A)1
- Rated Speed (RPM): 40
- Rated Torque(kg-cm): 2
- Stall Torque(Kg-Cm): 16
- No load Speed (RPM): 60
- Gear Ratio: 298 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy wheel mounting on output shaft

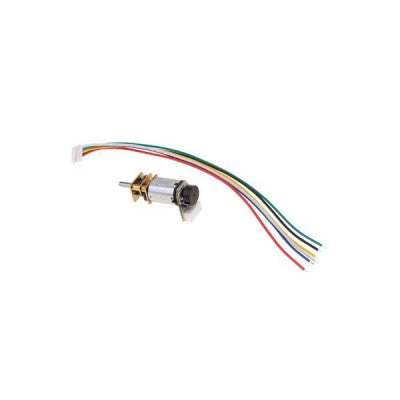

These N20 12V 60RPM Micro Metal Gear Motors with Encoder are designed for use at 12V but can operate in the 3-12V range. They come in various gear ratios from 5:1 to 1000:1, with most having the same dimensions for easy swapping. The motor features excellent stall characteristics, making it suitable for climbing hills effortlessly. The package includes 1 motor and 1 connector (14 cm).
How to wire:
Red: Motor Power (positive/negative rotation)
Black: Encoded power supply (VCC) Positive (3.3-5V)
Yellow: Signal feedback (motor turns 2 signals)
Green: Signal feedback (motor turns 2 signals)
Blue: Encoded power (GND)
White: Motor power (positive/negative rotation)
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
