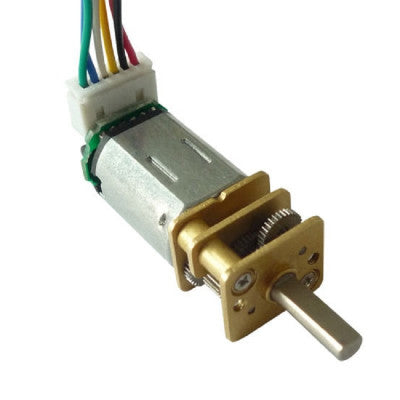

N20 12V 200RPM Micro Metal Gear Motor With Encoder
Compact and versatile motor with encoder for robotics projects.
- Model No: GA12 N20
- Rated Operating Voltage (VDC): 12
- No Load Current (mA): 10 mA
- Stall Current (A): 1
- Rated Speed (RPM): 160
- Rated Torque(kg-cm): 1
- Stall Torque(Kg-Cm): 7
- No load Speed (RPM): 200
- Gear Ratio: 150 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Model: GA12 N20
- DC Mini Metal Gear Motor
- Lightweight, high torque, low RPM
- Stall characteristics for hill climbing

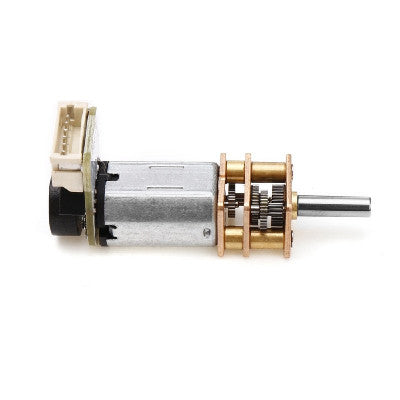

These N20 12V 200RPM Micro Metal Gear Motors are designed for use at 12V but can operate in the 3-12V range. They come in various gear ratios from 5:1 to 1000:1, with most having the same dimensions for easy swapping. The motor size is 15 x 12 x 10 mm with a gearbox length of 9 mm. The motor includes 3PPR (Pulse per Revolutions) feedback for precise control.
Wiring instructions: Red wire for motor power, black for encoded power supply (VCC), yellow and green for signal feedback, blue for encoded power (GND), and white for motor power.

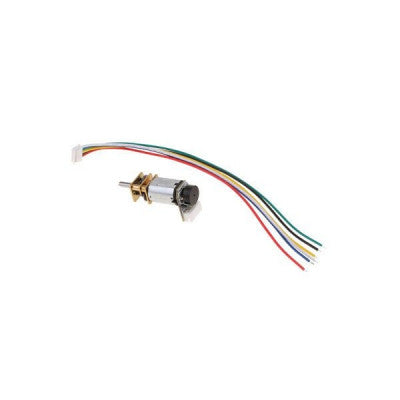

Package Includes: 1 x N20 12V 200RPM Micro Metal Gear Motor With Encoder, 1 x Connector (14 cm).
Images are for illustration only; actual product may vary.
