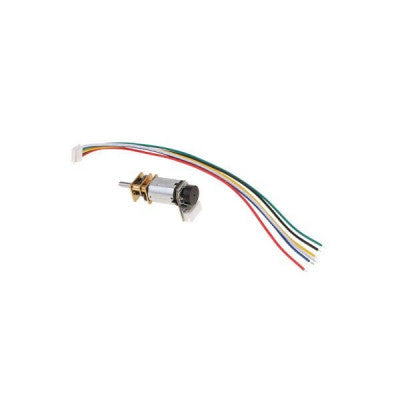

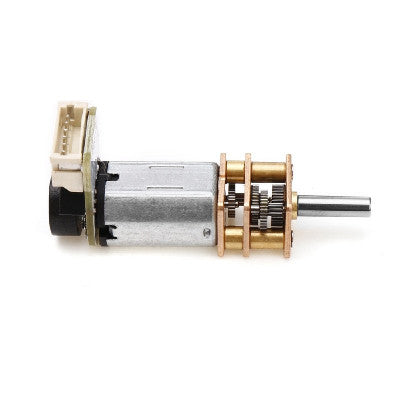

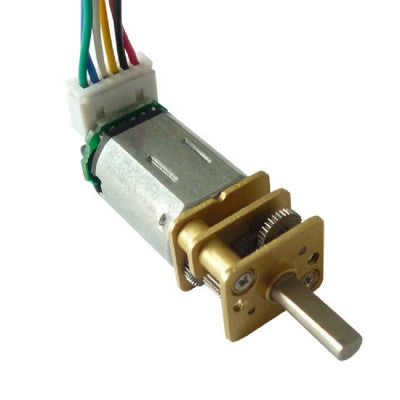

N20 12V 120RPM Micro Metal Gear Motor With Encoder
Compact and versatile motor with encoder for robotics projects.
- Model No: GA12 N20
- Rated Operating Voltage (VDC): 12
- No Load Current (mA): 20 mA
- Stall Current (A): 1
- Rated Speed (RPM): 100
- Rated Torque(kg-cm): 2
- Stall Torque(Kg-Cm): 16
- No load Speed (RPM): 120
- Gear Ratio: 250 : 1
- Shaft Type: D-type Single Side
- Shaft Diameter (mm): 3
- Weight (gm): 11
- Screw Size: M3
Top Features:
- Compact size: 15 x 12 x 10 mm
- High torque and low RPM
- Durable construction
- Easy wheel mounting on output shaft
These N20 12V 120RPM Micro Metal Gear Motors with Encoder are designed for use at 12V but can operate in the 3-12V range. They come in various gear ratios from 5:1 to 1000:1, with the same physical dimensions except for the 1000:1 version. The motors have excellent stall characteristics and can handle hills with ease. Wiring is straightforward with color-coded connections for power, signal feedback, and motor rotation control.
The package includes 1 x N20 12V 140RPM Micro Metal Gear Motor With Encoder and 1 x 14 cm Connector.
* Images are for illustration only; actual product may vary.
