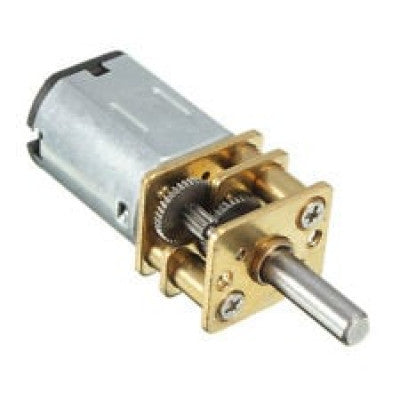

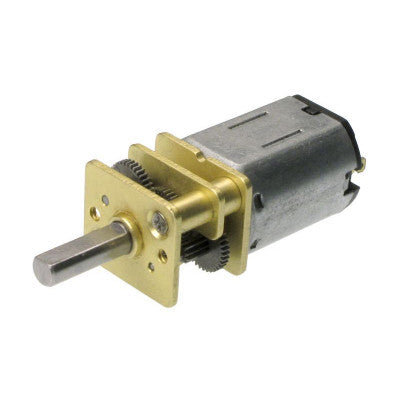

TN20 12V 100RPM Micro Gear Motor
Lightweight, high torque, and low RPM motor with gearbox assembly for increased torque.
- Model No: N20-12-100
- Motor Type: Single Shaft
- Rated Operating Voltage (VDC): 12
- No Load Current (mA): 0.06 A
- Stall Current (A): 0.75
- Rated Speed (RPM): 100
- Operating Voltage (VDC): 6 ~ 12
- Rated Torque(kg-cm): 0.52
- Stall Torque(Kg-Cm): 1.8
- No load Speed (RPM): 100
- Shaft Type: D-type
- Motor Body Size (Diameter) (mm): 12
- Shaft Diameter (mm): 3
- Weight (gm): 10
- Output Axial Length (mm): 10
- Fuselage w/o Shaft Length: 26
- Screw Size: M3
Features:
- DC Mini Metal Gear Motor
- Ideal for making robots
- Excellent stall characteristics
- Can climb hills easily
The TN20 12V 100RPM Micro Gear Motor is equipped with a gearbox assembly to increase torque. It has a cross-section of 1012mm, and the D-shaped gearbox output shaft is 9mm long and 3mm in diameter. This motor is compact and fits well in small-scale applications, making it ideal for driving wheels in various devices while carrying heavy loads. It is a durable motor with all-metal gears, suitable for replacing worn-out motors in machines such as boats, cars, electric bicycles, fans, and home appliances.
Package Includes: 1 x N20 12V 100RPM Micro Gear Motor
