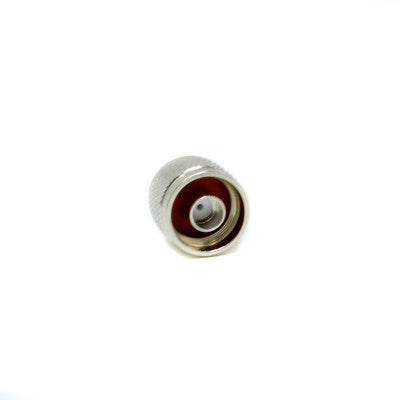

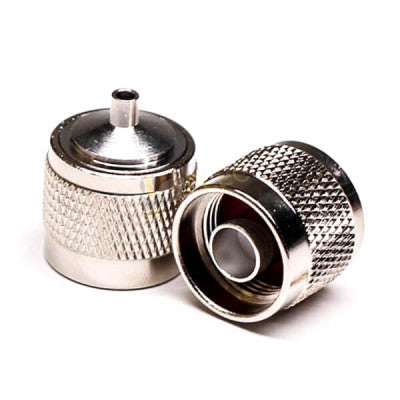

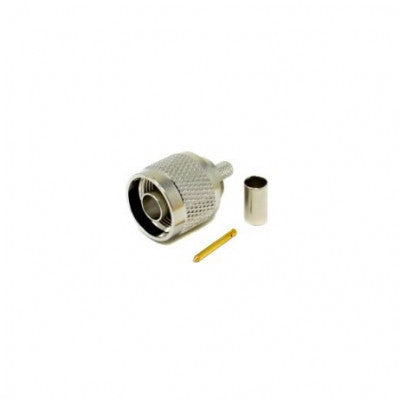

N-Type Coaxial Male Connector 180 Degree Solder Type
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and performance.
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Solder Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Copper Alloy
- Body Plating: Nickel Plating
- Impedance: 50 ohms
- Shield Termination: Crimp
Top Features:
- DC to 11GHz Frequency Range
- Threaded coupling mechanism for stability
- Medium size suitable for various applications
Main Application of N Connectors: Aerospace and Defense, Medical, Commercial Vehicle, Telecommunications, Data/Communications, Industrial.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~13 GHz
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 2500 V rms
- Working Voltage: 1000 V rms
- Center Contact Resistance: 1.0 m (Milliohms max.)
- Outer Contact Resistance: 0.2 m (Milliohms max.)
- Insulation Resistance: 5 x 10 m (Megohms min.)

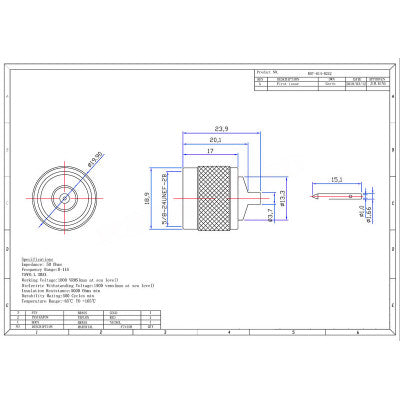

Mechanical Characteristics:

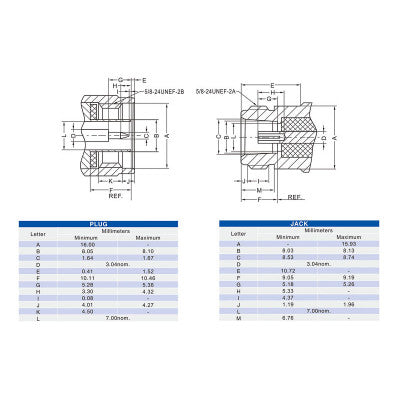

- Coupling: 5/8-24 thread
- Contact Retention: 6 lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability (mating): 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Temperature Range: -65°C ~ +125°C (PE Cable -40°C ~ +85°C)
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101

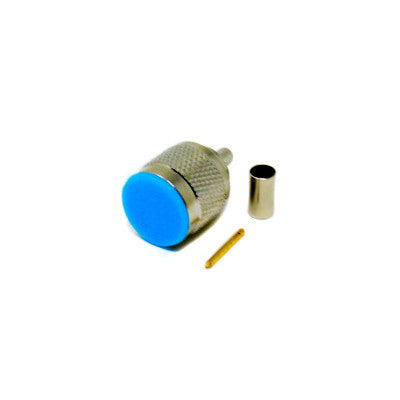

Package Includes:
- 1 x N-Type Coaxial Male Connector 180 Degree Solder Type for Cable
*Images are for illustration only; actual product may vary.
