SMA to Type N Adapter
A precision 50 Ohm coaxial adapter with a maximum frequency of 11 GHz.
- Resistance: 50
- Frequency Range: DC-11GHz
- Working Voltage: 335V RMS
- Withstand Voltage: 1000V RMS
- Insertion Loss: <0.24dB/3GHz
- VSWR: <1.15:1
- Durability: >500 cycles
- Body Material: Brass
- Plating Material: Nickel/Gold
- Pin/Socket Contact: Brass/Beryllium-Copper
- Pin/Socket Plating: Gold/Gold
- Insulator: PTFE
- Operating Temperature: -40 to 85 C
Features:
- Flat response
- Excellent VSWR
- Passivated stainless steel
- Low-cost adapters, available from stock
Applications: Interconnection of RF cables and equipment

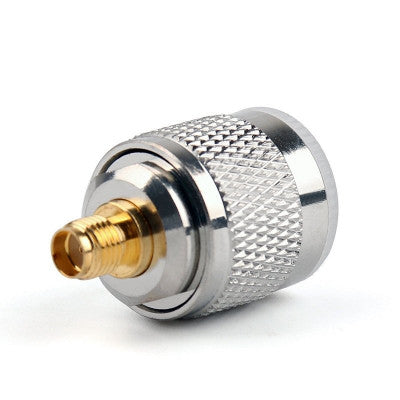

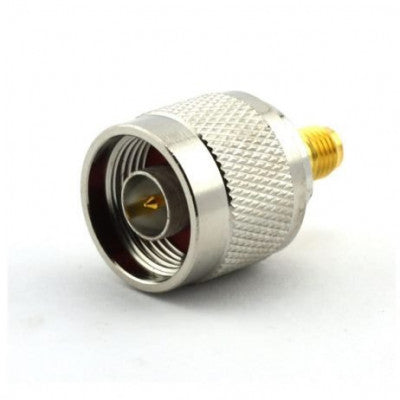

Package Includes: 1 x N(M) to SMA(F) Adapter
* Images are for illustration only; actual product may vary.
