N Connectors
Industry-standard connectors for terminating 50 ohm and 75-ohm cables with durability and performance.
- Main Application: Aerospace and Defense, Medical, Commercial Vehicle, Telecommunications, Data/Communications, Industrial
Features:
- Socket, N, Female, Straight, Soldering
- 50 ohm, 75 ohm, Brass, Nickel
- DC to 11GHz Frequency
- Threaded coupling mechanism for durability
These connectors offer great performance with a frequency range of 0~13 GHz and 50 ohm impedance. They are medium-sized and suitable for various applications in military, industry, or consumer electronics. With high quality and a 30-day money-back guarantee, these connectors are sourced directly from the OEM Original Factory, ensuring the same quality at a better price.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~13 GHz
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 2500 V rms
- Working Voltage: 1000 V rms
- Center Contact Resistance: 1.0 m (Milliohms max.)
- Outer Contact Resistance: 0.2 m (Milliohms max.)
- Insulation Resistance: 5 x 10 m (Megohms min.)

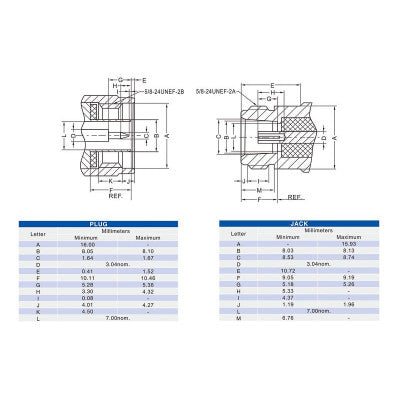

Mechanical Characteristics:
- Coupling: 5/8-24 thread
- Contact Retention: 6 lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability (mating): 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Temperature Range: -65°C ~ +125°C (PE Cable -40°C ~ +85°C)
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101

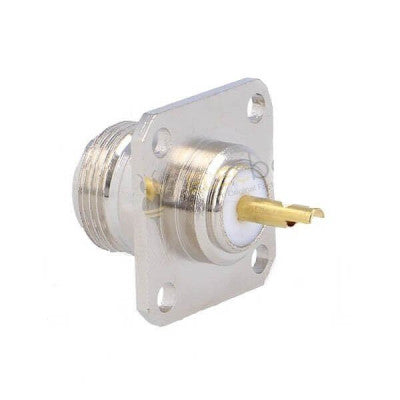

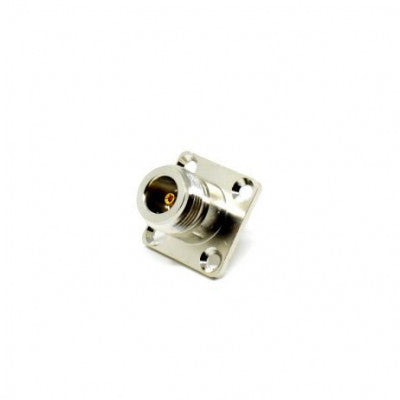

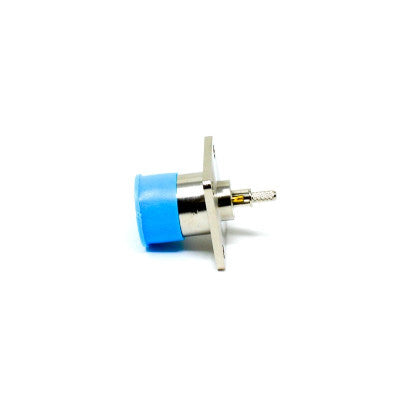

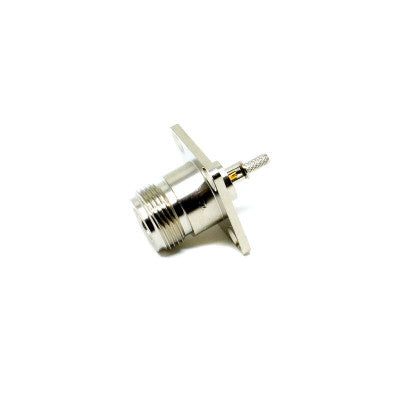

Package Includes: 1 x N Female Straight Soldering Panel Mounting Socket
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: Panel Mount / Cable
- Termination Style: Solder Type

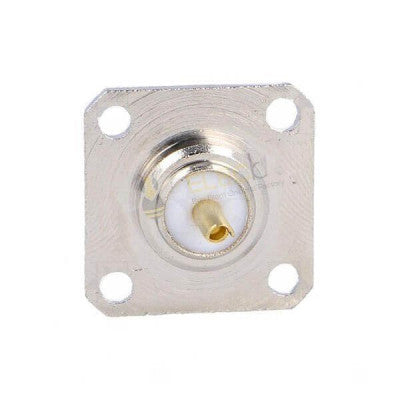

- Mounting Feature: 4 Hole Flange
- Function: 4 Hole Flange
- Polarity: Standard
- Body Material: Zinc Alloy
- Body Plating: Nickel Plating
- Impedance: 50/75 ohms
- Shield Termination: Solder
Images are for illustration only; actual product may vary.
