MX MCX Connector
Miniature connectors for 50 ohm system up to 6GHz with compact design
- Connector Type: MX MCX
- Impedance: 50 Ohm
- Frequency Range: Up to 6 GHz
- Connector Style: Crimping Type Male
- Compatibility: Cable RG 174
- Plating: Fully Gold Plated
Top Features:
- Broadband performance DC to 6 GHz
- Low cost with high quality
- Quick connect/disconnect snap-on mating
- Accommodates a wide range of miniature RG flexible coaxial cables
MX MCX Connector, miniature connectors designed for the 50 ohm system with a working frequency up to 6GHz. The snap-on mating design offers a smaller size compared to the SMB/SMC series (30% space reduction). MCX connectors are suitable where space is limited and weight performance is required. MX MCX Connector is a crimping type male connector.
Applications:
MCX connectors provide broadband capability through 6 GHz with a snap-on connector design. They are suitable for Automotive, Base Station Components, GPS Head End Equipment, Instrumentation, PC/LAN Radios, Telecom, WLAN Wireless/Networks, and Antenna applications.
Package Includes:

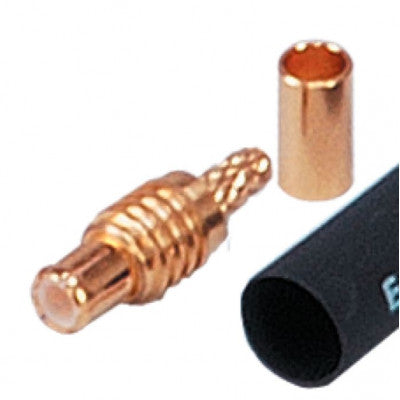

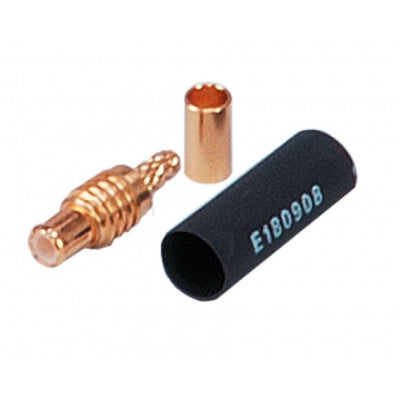

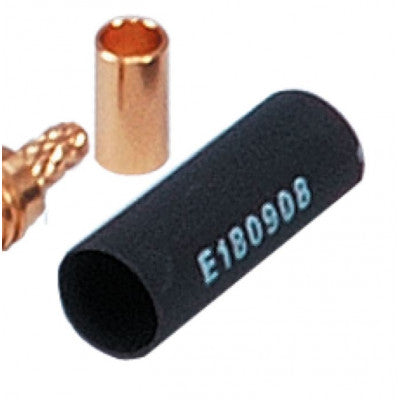

- 1 x MX MCX Male Plug Connector Crimp Type For RG-174U Gold Plated (MX-2312)
*Images are for illustration only; actual product may vary.
