MT8888 Monolithic DTMF Transceiver
A high-quality DTMF transceiver with call progress filter
- DC Power Supply Voltage: 6V
- Voltage on any pin: -0.3V to VDD+0.3V
- Current at any pin (other than supply): 10mA
- Storage temperature: -65°C to 150°C
- Package power dissipation: 1000mW

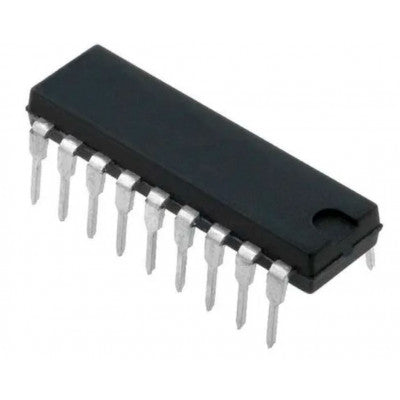

- Package Includes: 1 x MT8888 Integrated DTMF Transceiver IC
Top Features:
- Central office quality DTMF transmitter/receiver
- Low power consumption
- High speed Intel micro interface
- Adjustable guard time
The MT8888 is a monolithic DTMF transceiver with a call progress filter. It is fabricated in Mitel’s ISO2-CMOS technology, providing low power dissipation and high reliability. The DTMF receiver is based on the industry-standard MT8870 monolithic DTMF receiver, while the transmitter utilizes a switched capacitor D/A converter for low distortion and high accuracy DTMF signaling. Internal counters enable a burst mode for precise timing in transmitting tone bursts. A call progress filter can be selected to allow a microprocessor to analyze call progress tones. The device features a standard microprocessor bus that is directly compatible with 6800 series microprocessors.
Applications for the MT8888 include credit card systems, paging systems, repeater systems/mobile radio, interconnect dialers, and personal computers.
