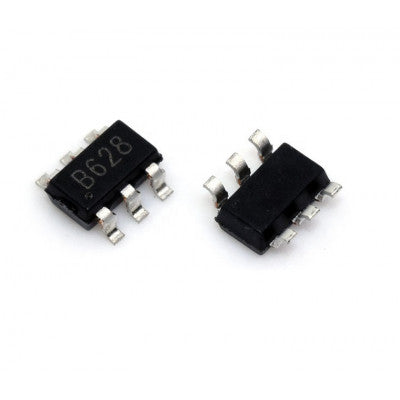

MT3608 High Efficiency Step Up Converter IC
A constant frequency, 6-pin SOT23 current mode step-up converter for small, low power applications.
- Manufacturer: Aerosemi
- Part No: MT3608
- Input Voltage: 2V ~ 24V
- Output Voltage: Up ~ 28V (Adjustable)
- Switch Current Limit: Internal 4A
- Switching Frequency: 1.2MHz Fixed
- Efficiency: up ~ 97%
- Integrated 80m? Power MOSFET
- Internal Compensation
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Package: SOT23-6
Top Features:
- Constant frequency operation
- Small, low-cost capacitors and inductors
- Internal soft-start for extended battery life
- Under-voltage lockout and thermal overload protection
The MT3608 is a versatile step-up converter suitable for various applications including battery-powered equipment, set-top boxes, LCD supplies, DSL and cable modems, routers, and networking cards powered from PCI.
Package Includes:
- 1 x MT3608 High Efficiency Step Up Converter IC - (SMD SOT23-6 Package)
Images are for illustration only; actual product may vary.
