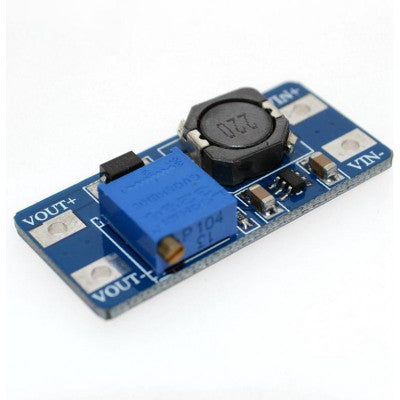

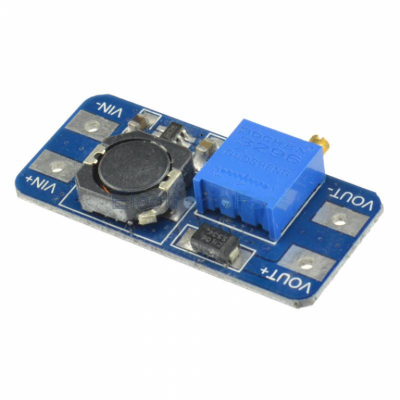

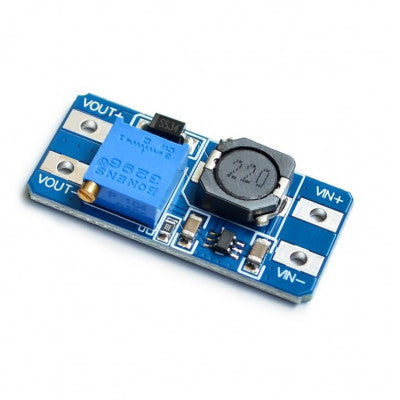

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module
A low-cost module that can step-up a 2 to 24V input voltage up to a 5 to 28V output at up to 2A.
- Input Voltage: 2 ~ 24V
- Output Voltage: 5 ~ 28V
- Output Current: 2A
- Operating Temperature: -40 to +90°C
- Efficiency: 93%
- Length: 37mm
- Width: 17mm
- Height: 7mm
- Weight: 4g
Top Features:
- Efficient up to 93%
- Good current sourcing
- Inexpensive
- Simple voltage adjustment
The MT3608 2A Max DC-DC Step Up Power Module Booster is an adjustable boost converter capable of outputting a voltage in the range of 5.0 to 28V at a continuous current of up to 1.5A, with 1A available with most settings. It uses low ESR bulk ceramic capacitors instead of electrolytic caps for longevity and compact packaging. The module features over-current and thermal limiting for safety.
The module has a single-turn potentiometer for voltage adjustment, with the upper limit depending on input voltage and load. It has compact boards with 4 solder pads for connections: VIN+, VIN-, VOUT+, and VOUT-. The input voltage should not exceed the maximum input voltage, and the output voltage must be higher than the input voltage.
Note: Peak current output is not more than 2A for input & output.
*Images are for illustration only; actual product may vary.
