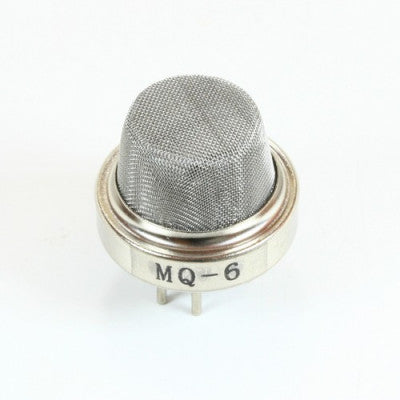

MQ-6 LPG - Isobutane - Propane Gas Sensor
A semiconductor gas sensor detecting LPG, Isobutane, and Propane gas at concentrations from 100 ppm to 10,000 ppm.
The MQ-6 LPG - Isobutane - Propane Gas Sensor is a high-precision device capable of detecting the concentration of gas in the air and outputting its reading as an analog voltage. This sensor operates at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V, providing efficient and reliable detection of gas leaks.
- Product Type: Gas Sensor
- Detection Range: 100 - 10,000 ppm iso-butane propane
- Response Time: <10s
- Heater Voltage: 5.0V
- Dimensions: 18mm Diameter, 17mm High excluding pins, Pins - 6mm High
- High Sensitivity to LPG, iso-butane, propane
- Small sensitivity to alcohol, smoke
- High sensitivity to Propane, Butane, LPG and also response to Natural gas
- Good sensitivity to Combustible gas in wide range
- Long life and low cost
- Simple drive circuit
The MQ-6 LPG - Isobutane - Propane Gas Sensor can be implemented in a multitude of applications, including:
- Gas leak detection systems
- Fire/Safety detection systems
- Domestic gas leakage detectors
- Industrial Combustible gas detectors
- Portable gas detectors
- Gas leak alarms
- Gas detectors
