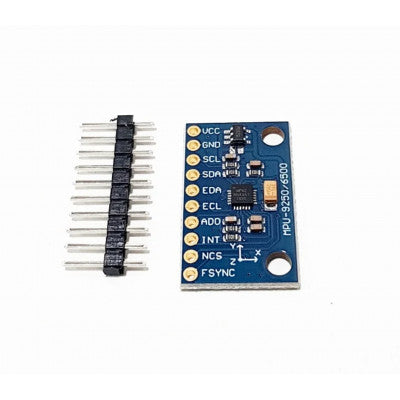

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module
A versatile 9-axis motion tracking device with accelerometer, gyroscope, and magnetometer.
- Spec name: MPU-9250
- Spec name: Multi-chip module with two dies integrated
- Spec name: 3-Axis accelerometer, gyroscope, and magnetometer
- Spec name: Digital Motion Processor (DMP)
- Spec name: Embedded temperature sensor
- Spec name: I2C Address: 0x68 by default, 0x69 if AD0 is pulled high
- Spec name: Onboard 3.3V voltage regulator
- Spec name: Pull-up resistors on SDA, SCL, and nCS lines
- Spec name: Pull-down resistors on FSYNC and AD0 lines
Top Features:
- Acceleration, Gyroscope, and Magnetometer
- 9 DOF module
- Ultra-low noise linear LDO voltage regulator
- Onboard filters to reduce noise from high current electronics
Applications include FPV, RC, and Robots systems, GPS navigation systems, impact recognition and logging, gaming and virtual reality input devices, motion-activated functions, intelligent power saving for handheld devices, vibration monitoring and compensation, and free-fall detection.
If you desire to power the module from 3.3V, you can bridge the solder jumper next to the voltage regulator to bypass the regulator.
Package Includes:
- Spec name: 1 x MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module
- Spec name: 1 x Jumper Header (Unsoldered)
* Images are for illustration only; actual product may vary.
