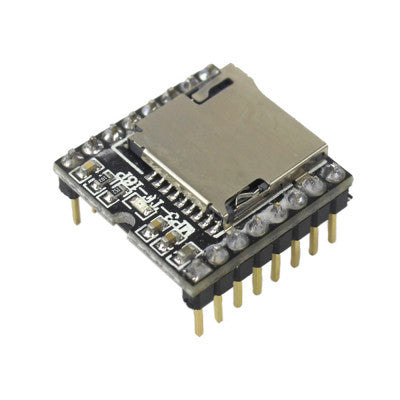

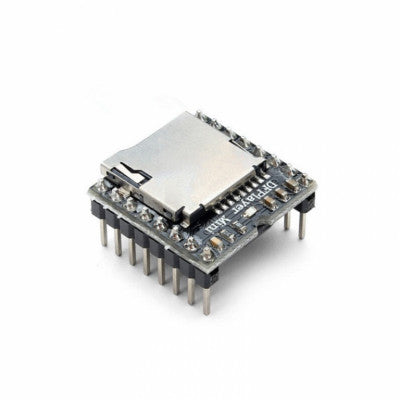

MP3-TF-16P MP3 Disk TF Card Module Serial Port
A compact and inexpensive MP3 module with versatile control options
- With the broadcast language spots feature: Pause background music for announcements
- Control Modes: IO control, serial mode, AD key control
- Audio Data Organization: Sorted by folder, supports up to 100 folders
- Sampling Rates (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
- DAC Output: 24-bit, Dynamic Range: 90dB, SNR: 85dB
- File System Support: FAT16, FAT32, up to 32G TF card
- Volume Control: 30 levels, EQ: 6 adjustable settings
Applications:
- Automatic broadcasting equipment
- Car navigation voice broadcast
- Border control channel voice prompts
- Road transport inspectors, toll voice prompts
- Train station, bus station voice prompts security check
- Electric power, telecommunications, financial operating room voice prompts
- Electrical and mechanical equipment failure alarm
- Electric sightseeing bus safety with voice notices
- Vehicle entry/exit channel verification voice prompts
- Multi-channel voice alarm or guidance equipment operation
- Fire alarm voice prompts
Package Includes:
- 1 x MP3-TF-16P MP3 Disk TF Card Module Serial Port
*Images are for illustration only; actual product may vary.
