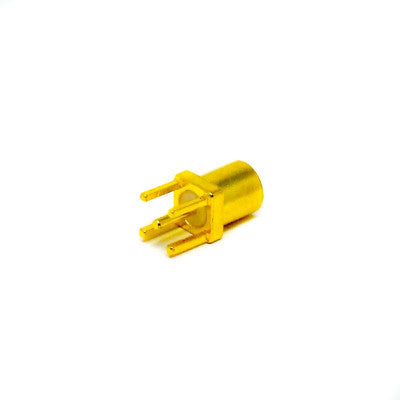

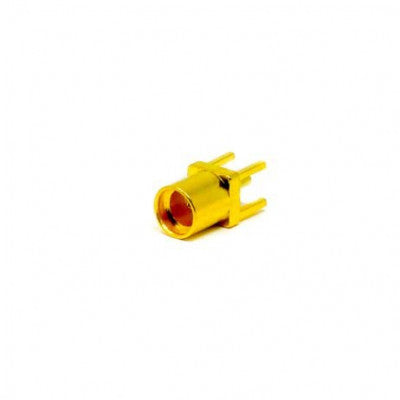

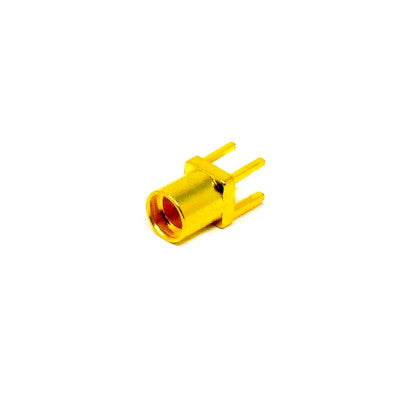

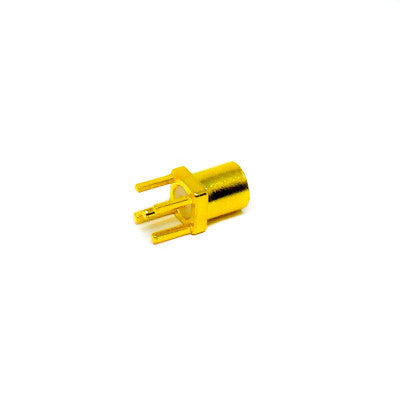

MMCX PCB Connector Female Straight Through Hole
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and perfect design.
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: PCB Mount
- Termination Style: Solder Type
- Mounting Feature: Through Hole
- Function: Other
- Polarity: Standard
- Body Material: Copper Alloy
- Impedance: 50 ohms
- Shield Termination: NA
Top Features:
- Pcb Mount, Jack/female, Straight/180, 50, Through Hole
- Micro-miniature version of MCX with all features of MCX series connector
- Snap-on Interface ideal for quick Installation and discount
- High cost-effective with excellent broadband performance and low reflections
Main Application of MMCX Connectors includes Consumer Electronics (Smartphones, GPS, and wireless antennas), Aerospace and Defense (GPS), Medical Devices, Telecommunications (GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas), Data/Communications (Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN), and Industrial (Computer connections-LAN/WAN).
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 500V rms
- Working Voltage: 170V rms
- Center Contact Resistance: 5.0 m (Milliohms max.)
- Outer Contact Resistance: 1.0 m (Milliohms max.)
- Insulation Resistance: 1000 m
Mechanical Characteristics:
- Coupling: Snap-on/Snap-off
- Contact Retention: 2.3lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Environmental Characteristics: Teflon -65C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x MMCX PCB Connector Female Straight Through Hole for Mount
*Images are for illustration only; actual product may vary.*
