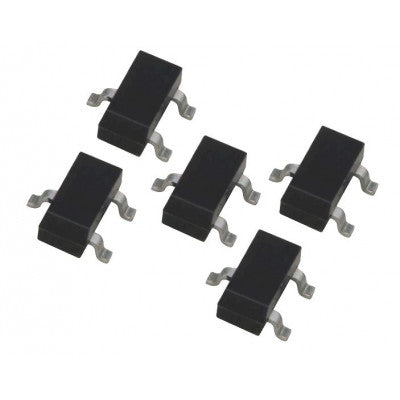

MMBT5401 PNP High Voltage Transistor
Surface-Mounted Device SOT-23 Plastic Package
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector-Emitter Voltage VCEO Max: 150 V
- Collector-Base Voltage VCBO: 160 V
- Emitter-Base Voltage VEBO: 5 V
- Maximum DC Collector Current: 0.6 A
- Gain Bandwidth Product fT: 300 MHz
- Maximum Operating Temperature: +150 C
- Series: MMBT5401
- Continuous Collector Current: 0.6 A
- DC Collector/Base Gain hFE Min: 50 at 1 mA at 5 V, 60 at 10 mA at 5 V, 50 at 50 mA at 5 V
- Minimum Operating Temperature: -55 C
- Pd - Power Dissipation: 300 mW
Key Features:
- High Voltage Capability
- Suitable for SMD/SMT Mounting
- PNP Polarity
- 300 MHz Gain Bandwidth Product
