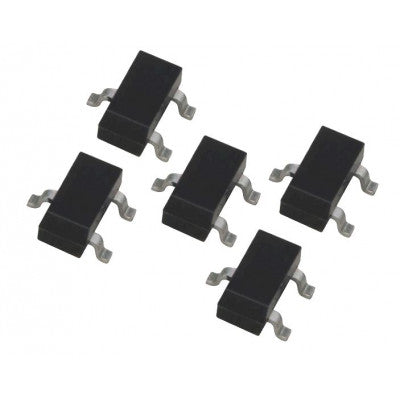

MMBT3906 PNP Switching Transistor
Designed for general purpose amplifiers and switches in SOT-23 package.
- Mounting Style: SMD/SMT
- Package/Case: SOT-23
- Transistor Polarity: PNP
- Configuration: Single
- Collector-Emitter Voltage VCEO Max: 40 V
- Collector-Base Voltage VCBO: 40 V
- Emitter-Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: -0.4 V
- Maximum DC Collector Current: 0.2 A
- Gain Bandwidth Product fT: 250 MHz
- Maximum Operating Temperature: +150 C
- Series: MMBT3906
- Continuous Collector Current: 0.2 A
- Minimum Operating Temperature: -55 C
- Pd - Power Dissipation: 350 mW
Features:
- PNP switching transistor
- For general purpose amplifiers and switches
- Suitable for SMT mounting
- Designed for reliable performance
The MMBT3906 PNP Switching transistor is an ideal choice for various general-purpose amplification and switching applications. Its SOT-23 plastic package ensures easy mounting and robust performance. The transistor features a PNP configuration with a maximum collector-emitter voltage of 40V. With a continuous collector current of 0.2A and a gain bandwidth product of 250 MHz, this transistor operates efficiently across a wide temperature range from -55°C to +150°C. It is a reliable component for your electronic projects.
For the NPN complement of this transistor, refer to MMBT3904.
* Images are for illustration only; actual product may vary.
