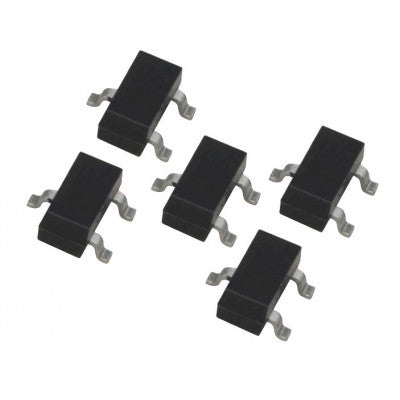

MMBT3904 NPN Switching Transistor
A versatile NPN Switching transistor for general purpose applications.
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: NPN
- Configuration: Single
- Collector-Emitter Voltage VCEO Max: 40 V
- Collector-Base Voltage VCBO: 60 V
- Emitter-Base Voltage VEBO: 6 V
- Collector-Emitter Saturation Voltage: 0.3 V
- Maximum DC Collector Current: 0.2 A
- Gain Bandwidth Product fT: 300 MHz
- Maximum Operating Temperature: +150°C
- Series: MMBT3904
- DC Current Gain hFE Max: 300
- Continuous Collector Current: 0.2 A
- Minimum Operating Temperature: -55°C
- Pd - Power Dissipation: 350 mW
Top Features:
- 40V Collector-Emitter Voltage
- 300MHz Gain Bandwidth Product
- 0.2A Continuous Collector Current
The MMBT3904 NPN Switching Transistor, housed in a Surface-Mounted Device SOT-23 plastic package, is specifically crafted for applications requiring general purpose amplification and switching functions. Its PNP complement is the MMBT3906, offering versatility in design and implementation.
With a maximum operating temperature of +150°C and a minimum operating temperature of -55°C, this transistor ensures reliability across various environmental conditions. It boasts a collector-emitter saturation voltage of 0.3V and a DC current gain up to 300, making it suitable for a wide range of electronic circuits.
*Images are for illustration only; actual product may vary.*
