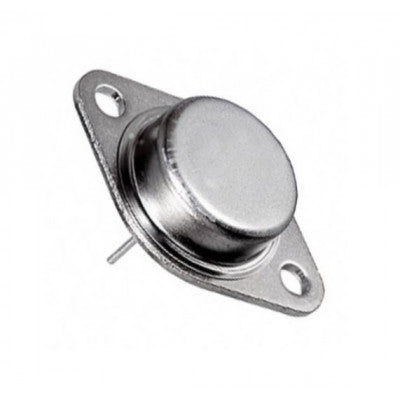

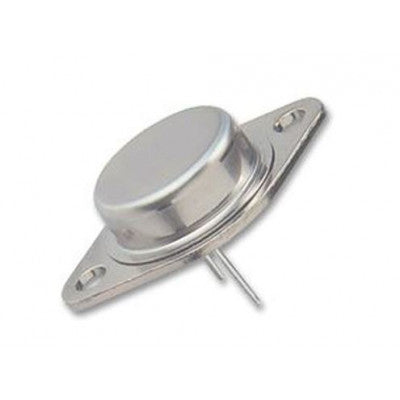

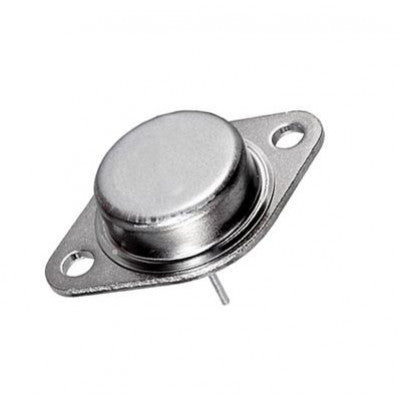

MJ15004
Three-layer PNP transistor for low distortion designs
- Transistor Polarity: PNP
- Collector-Emitter Voltage (VCEO): 140VDC
- Collector-Base Voltage (VCBO): 140VDC
- Emitter-Base Voltage (VEBO): 5VDC
- Continuous Collector Current (IC): 20ADC
- Continuous Base Current (IB): 5ADC
- Continuous Emitter Current (IE): 25ADC
- Power Dissipation (Pd): 250W
- Operating Temperature Range: -65 - 200°C
- DC Current Gain (hFE): 150
Features:
- High safe operating area
- For low distortion complementary designs
- High DC current gain
- Simple drive requirements
MJ15004 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.
Notable for its high safe operating area, this transistor is suitable for low distortion complementary designs, with a high DC current gain. It has simple drive requirements and is easy to carry and handle.
