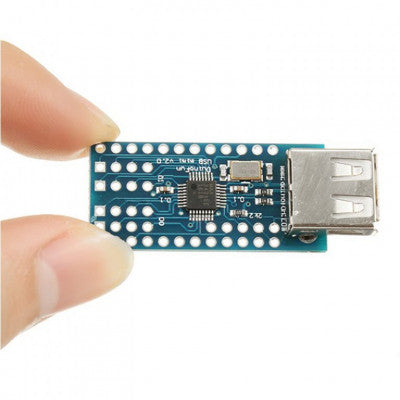

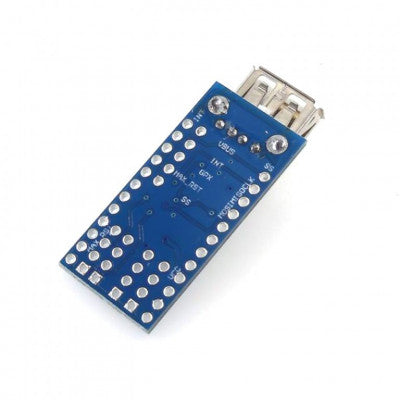

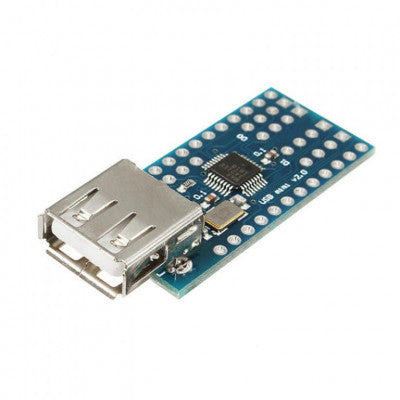

MINI USB Host Shield 2.0 ADK
Enhance your Arduino with USB host capabilities
- Supports: 3.3V / 8M / 328 Promini and 3.3V FTDI
- USB Host Function
- USB HUB Function
Top Features:
- Supports 3.3V Arduino Pro Mini
- Communicate with USB devices
- Google ADK compatible
- Compact size for easy integration
This MINI USB Host Shield 2.0 ADK is designed to be easily combined with Mini variant of Arduino Board, specifically, 3.3V Arduino Pro Mini. It will also work with other 3.3V Arduinos. Also, due to its small size it can be used as general MAX3421E breakout board. This shield is fully compatible and supported by USB Host Shield Library. Arduino Pro Mini is not included.
This board makes Arduino very easy to communicate with a USB slave device, such as USB keyboard, mouse, U disk, camera, Android phone and so on. Using USB Hose Shield with Arduino also allows you to implement Google ADK. It supports 3.3V / 8M / 328 Arduino Pro mini and 3.3V FTDI. Mini USB host allows Arduino (Pro mini version only) to achieve USB HOST function, can communicate with other USB devices, and support USB HUB function. It also supports for Google Android ADK function Support For Android phone type:G1, Nexus One, Nexus S, Motorola Droid X (mobile phone system needs to upgrade to Android 2.3.
Specifications:
- Supports: 3.3V / 8M / 328 Promini and 3.3V FTDI
- Length (mm): 45.5
- Width (mm): 18.15
- Height (mm): 10
- Weight (gm): 4
Images are for illustration only; actual product may vary.
