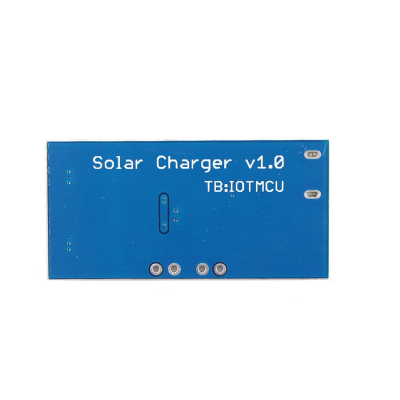

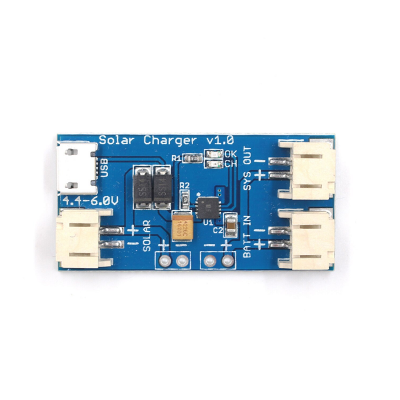

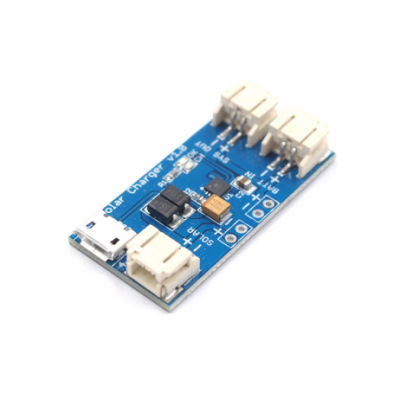

Super-Mini Solar Lipo Charger
A compact charger for maximizing solar power into LiPo batteries.
- Input Voltage Range: 4.4 to 6VDC
- Max Charge Current: 500mA
- Connector: 2-Pin Connectors
- Battery Status Indicator: Red: Charging, Green: Charged
- Length (mm): 39
- Width (mm): 19
- Height (mm): 7
- Weight (gm): 5
Features:
- Solar panel input: 4.4-6V
- Max charge current: 500mA

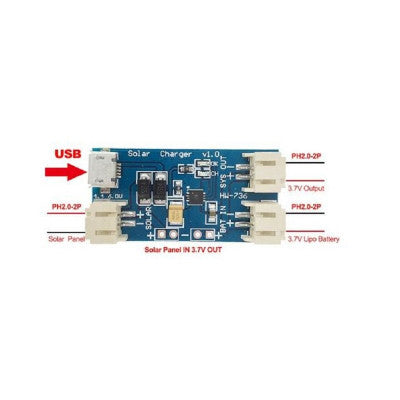

- Interface: 2-pin JST connectors (or PH2.0)
- Short circuit protection
This Super-Mini Solar Lipo charger is based on the CN3065 lithium battery charge management chip. It efficiently transfers power from solar panels to LiPo batteries. Simply connect your solar panel and battery to start charging.
The output is designed for single polymer lithium-ion cells, with the load connected in parallel to the battery. The charger has a default maximum charge current of 500mA and supports a maximum input of 6V (minimum 4.4V). It's important not to exceed the battery's capacity rating during charging.
Note: This product is also available in HW 736 variant with the same functionality; variant shipped randomly.
* Images are for illustration only; actual product may vary.
