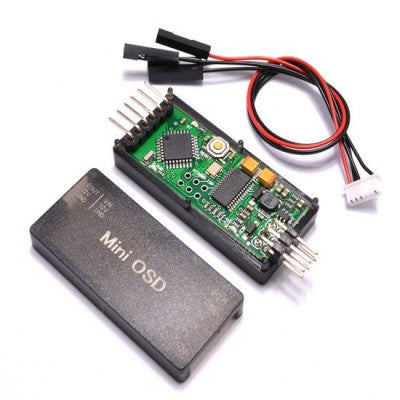

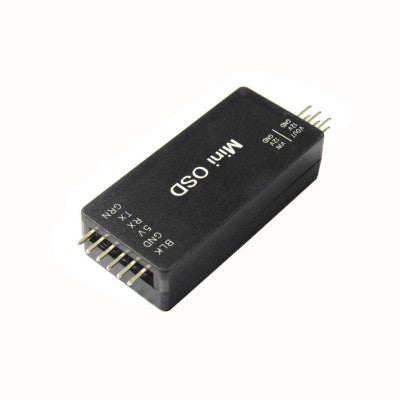

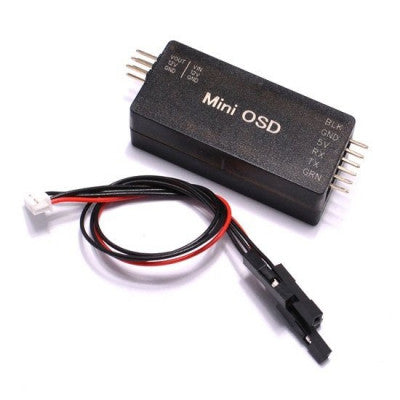

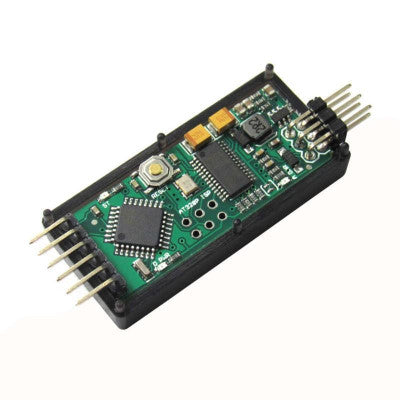

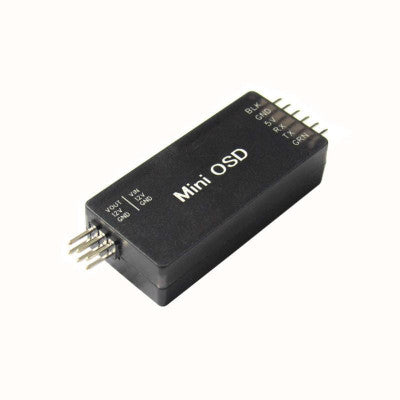

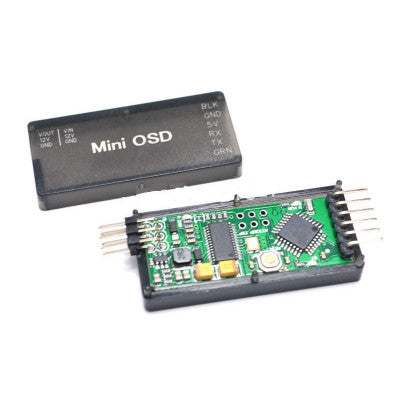

Mini OSD for Pixhawk Flight Controller
A companion OSD board for reading MAV Link data in the APM telemetry stream.
- Arduino bootloader: ATmega328P
- On-screen display: MAX7456
- Input supply: 12V
- Cable length (mm): 100
- Length (mm): 58
- Width (mm): 22
- Height (mm): 12
- Weight (gm): 15
Features:
- ATmega328P with Arduino bootloader
- MAX7456 monochrome on-screen display
- FTDI cable compatible pinout
- Standard 6 pin ISP header
The Mini OSD for the Pixhawk Flight Controller has a companion OSD board called MinimOSD. It reads all the MAV Link data in the APM telemetry stream and overlays it on the video stream if you're using an onboard camera and wireless video transmitter. This is useful if you're flying in First Person View (FPV) mode or don't want to use a laptop at the field to see your telemetry data in the Mission Planner.
Important Note: You cannot connect the OSD when your APM 2 is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.
Package includes: 1 x Mini OSD for the Pixhawk Flight Controller module, 1 x Connecting Cables.
* Images are for illustration only; actual product may vary.
