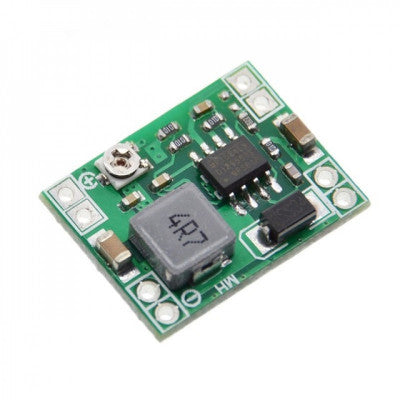

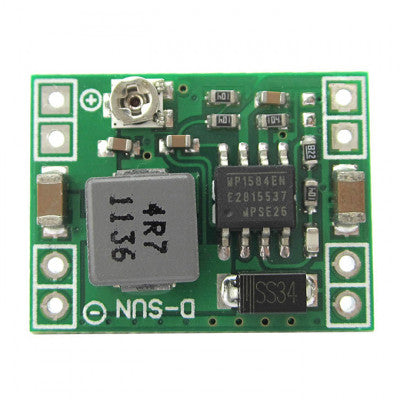

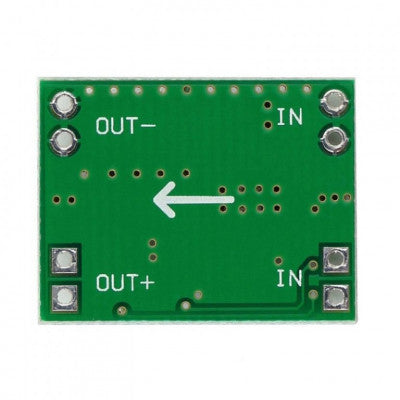

Mini MP1584 DC-DC 3A Adjustable Buck Module
Ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter
- IC Chip: MP1584EN
- Input Voltage (V): 4.5 to 28
- Output Voltage(V): 0.8 to 20
- Output Current(A): 3
- Typical Output Voltage(A): 1.8
- Typical Switching Frequency(MHz): 1
- Maximum Switching Frequency(MHz): 1.5
- Conversion Efficiency(%): 96
- Output Ripple(mV): <30
- Accuracy: 0.5%
- Operating Temperature (C): -50 to +85
- Length (mm): 22
- Width (mm): 17
- Height (mm): 4
Features:
- Wide 4.5V to 28V Operating Input Range
- High-Efficiency Pulse Skipping Mode for Light Load
- Ceramic Capacitor Stable
- Internal Soft-Start
The Mini MP1584 DC-DC 3A Adjustable Buck module is designed with soft start, thermal shutdown, and under-voltage lockout (UVLO) for protection. Its small size, light weight, low internal power consumption, and wide input voltage range make it suitable for various applications including RC cars, airplanes, quadcopters, robotics, Arduino modules, and DIY devices.
Applications include DIY projects, robotics, breadboard power supply, manual speed adjustment of small DC motors, power supply for RC projects, universal battery elimination circuit (UBEC), receiver/servo power supply, communications equipment power supply, and mobile equipment power supplies.
Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.
Images are for illustration only; actual product may vary.
