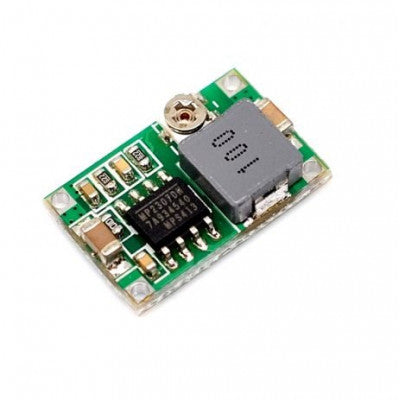

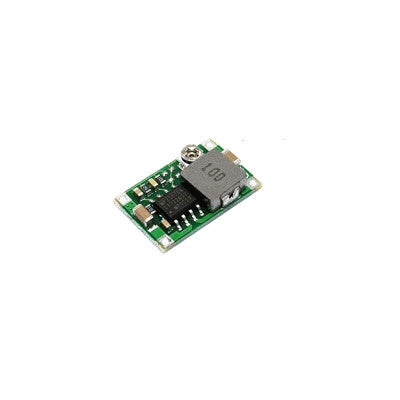

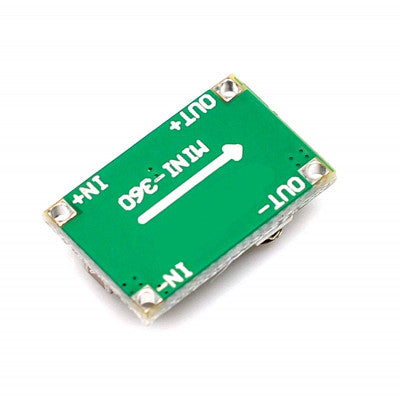

Mini 360 Step-Down Buck Converter Power Module
Efficient and compact power supply module for various applications.
- Regulator: ICMPS MP2307DN
- Input Voltage Range: 4.75 - 23VDC
- Selectable Output Voltage: 1.0 - 17VDC
- Rated Current: 1.8A Continuous, 3A Surge Current
- Maximum Conversion Efficiency: 95%
- Switching Frequency: 340kHz
- No-load Output Ripple: 30mV
- Load Regulation: ±0.5%
- Voltage Regulation: ±2.5%
- Operational Temperature Range: -40 to +85°C

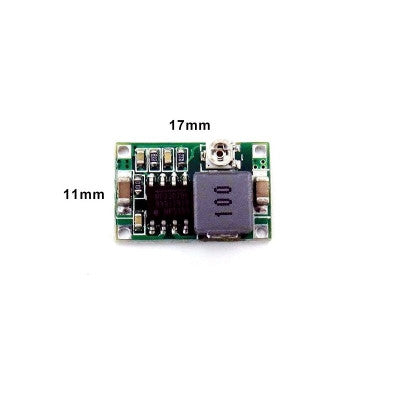

- Length (mm): 17
- Width (mm): 11
- Height (mm): 3.8
- Weight (gm): 2

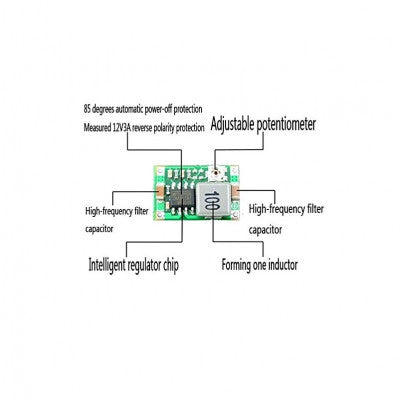

Features:
- Non-isolated step-down module (BUCK)
- Synchronous rectification
- Built-in 160C thermal shutdown
- Output ripple: 30mV (no-load)
This Module can be used for DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, and various demanding applications like aviation models due to its right size and weight.
Images are for illustration only; actual product may vary.
