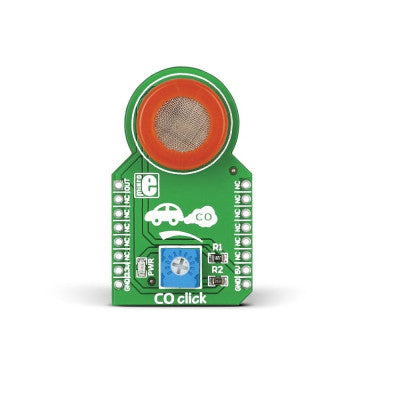

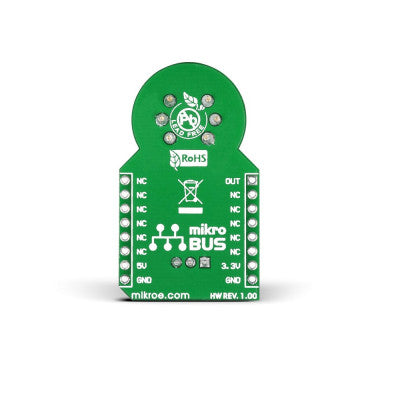

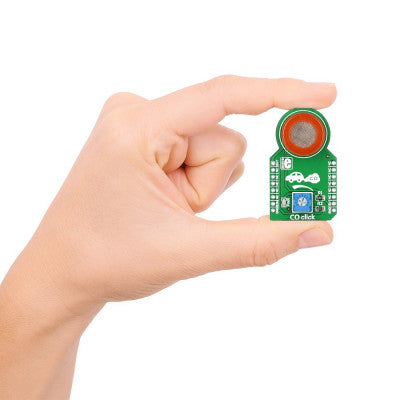

CO Click with MQ-7 Gas Sensor
High sensitivity carbon monoxide gas sensor designed for 5V power supply
- MQ-7 Sensor Range: 20ppm-2000ppm of CO
- Onboard Potentiometer: For calibration
- Communication: AN pin interface
- Power Supply: 5V
Top Features:
- High sensitivity to CO
- Calibration potentiometer included
- AN pin communication
- Operates on 5V power supply
The MQ-7 sensor integrated into the CO Click has a gas sensing layer made of Tin dioxide (SnO2). This layer exhibits lower conductivity in clean air, with conductivity levels increasing as carbon monoxide levels rise. The sensor's detection range spans from 20ppm to 2000ppm of CO.

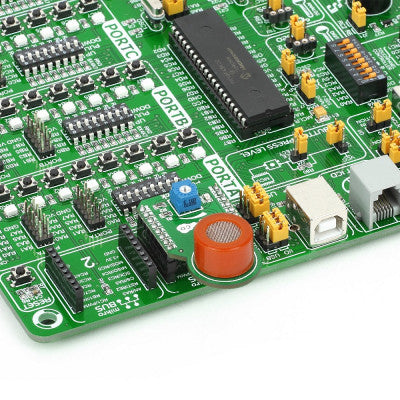

The CO Click is equipped with a mikroBUS host socket, two jumpers for configuration, and a power indicator LED for visual status indication.
- Package Includes: 1 x Mikroe CO Click
Images are for illustration only; actual product may vary.
