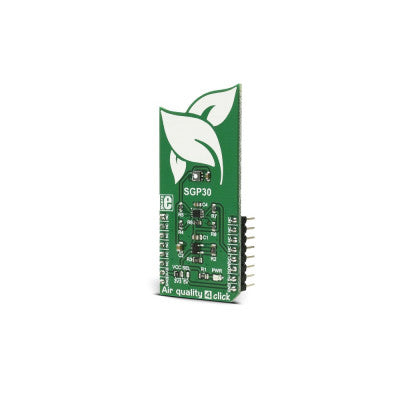

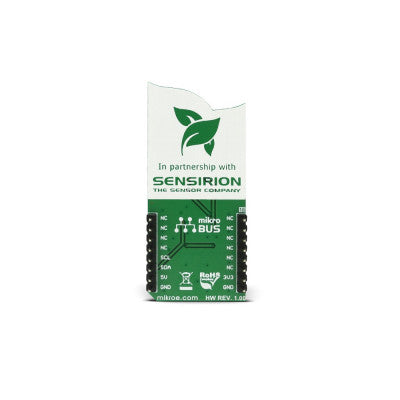

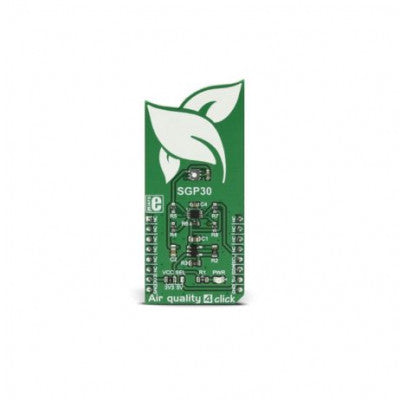

Air Quality 4 Click
An advanced air quality sensing device for detailed air quality parameters
- Type: Air Quality, Gas Sensor
- Interface: I2C
- Compatibility: mikroBUS
- Click board: 57.15 x 25.4 mm
- Input Voltage: 3.3V or 5V
-
On-board modules:
- SGP30 from Sensirion, a multi-pixel gas sensor
- SPX3819M5, a small 500mA LDO voltage regulator from EXAR
- PCA9306 dual bidirectional I2C bus
- SMBus voltage level shifter from Texas Instruments
Top Features:
- TVOC value readings
- CO2 equivalent concentration readings
- Output of raw values of H2 and Ethanol
- Perfect for air conditioning and ventilation systems

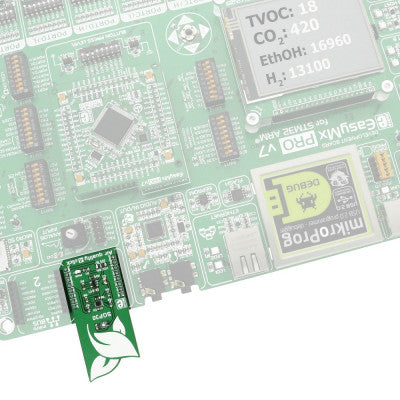

The Air Quality 4 Click is a sophisticated air quality sensing device that combines multiple metal-oxide sensing elements on a chip to provide detailed information on air quality parameters. It can output TVOC value readings and CO2 equivalent concentration readings in indoor environments. Additionally, it can output raw values of H2 and Ethanol in the air for calculating gas concentrations relative to a reference concentration.
The sensor used on the Air Quality 4 Click is a complete system of sensors on a chip, featuring an I2C interface, a temperature-controlled micro hotplate, and two compensated and processed indoor air quality signals. It is produced using proprietary CMOSens technology, providing detailed information and robustness against air contamination. These attributes make the Air Quality 4 Click a perfect solution for various air conditioning systems, ventilation systems, and other IoT applications where accurate, detailed, and reliable air quality readings are required.
How Does It Work?
The sensor IC used on Air Quality 4 Click is the SGP30 from Sensirion, a multi-pixel gas sensor for indoor applications. This sensor is a system of several metal-oxide sensing elements on a chip (pixels) used to measure and process readings of various gases in the air and output them as Total Volatile Organic Compounds (TVOC) [ppb] and CO2 equivalent signal [ppm].
The SGP30 sensors are made using advanced MOXSens Technology to provide unmatched robustness against siloxane contamination, ensuring long-term stability and accuracy. The sensor uses a dynamic baseline compensation algorithm and calibration parameters to provide accurate readings of TVOC and CO2eq properties.
Applications: A perfect solution for various air conditioning systems, ventilation systems, and other IoT applications where accurate, detailed, and reliable air quality readings are required.
*Images are for illustration only; actual product may vary.
