Micro Minim OSD
The next evolution of minimization for powerful OSD at an unreal cost.
- Input Supply voltage: 5V
- Current Consumption: 500mA
- Monochrome OSD: MAX7456
- Operating Temperature: -40°C ~ +85°C
- Length: 16mm
- Width: 15.6mm
- Height: 4mm
- Weight: 4g

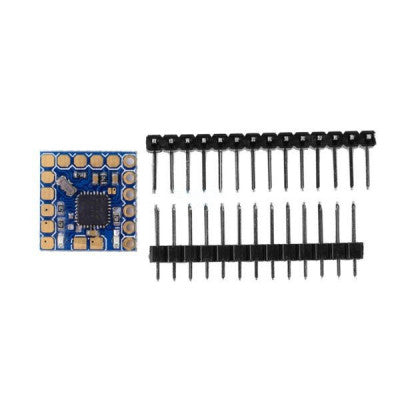

- Package Included: 1 x Micro Minim OSD For Racing F3 Naze32 Flight Controller RC Drone, 1 x Straight berg connector (w/o soldered), 1 x 90 berg connector (w/o soldered)
Top Features:

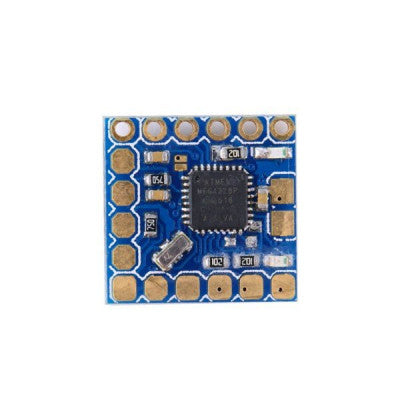

- ATmega328P with Arduino bootloader
- MAX7456 monochrome on-screen display
- Two independent power sections with LED indicators
- Solder jumpers for power sections

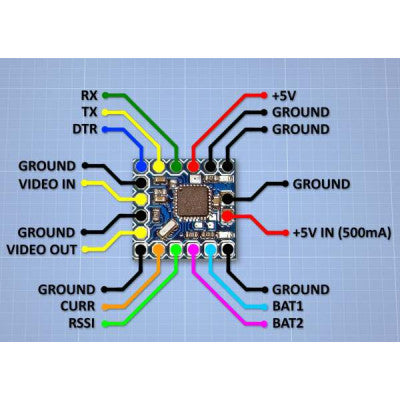

The Micro Minim OSD is the same as the older MinimOSD hardware but has been modified to take advantage of custom firmware options. It does not have the DC/DC converter, resulting in less heat when powered off a Flight controller. This OSD is MAVLink compatible for ArduCopter and MultiWii Serial compatible for MultiWii and Baseflight/Cleanflight control boards. It allows you to connect two batteries up to 4S to monitor the main flight battery voltage and FPV battery voltage. The OSD also features a pin for analog or digital PWM RSSI and a connection for attaching a current sensor. It is tailored for use with ArduPilot Mega and the MAVlink protocol, designed to be as compact as possible, and features an ATmega328P 8-bit microcontroller with an Arduino bootloader and a MAX7456 monochrome on-screen display. Programming is done through an FTDI card.
This hardware takes the hardware mods for this firmware and builds them into an RTF solution.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
