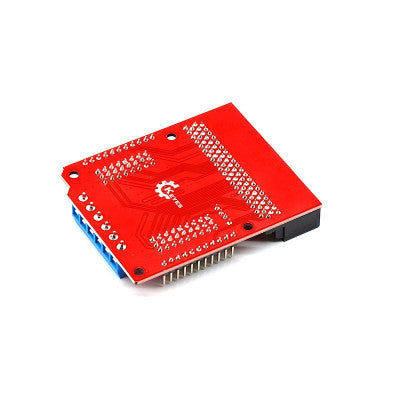

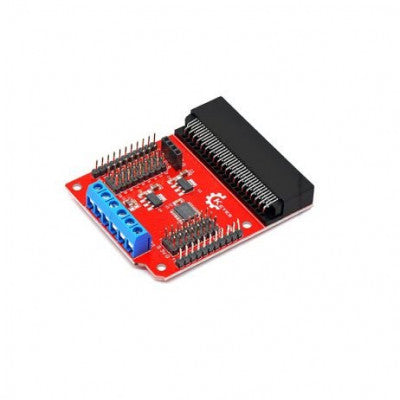

Micro Bit Motor Drive Breakout Board Shield
A motor drive breakout board for the BBC micro:bit to unlock its potential.
- Input Voltage: DC 6-12V
- Working current of motor drive: <= 1.2A
- Starting peak current: 2A/3.2A
- 4 motor control modes: Forward/reverse/brake/stop
- PWM frequency: 100 kHz max
- Drive Partial Working Current: 1.2A

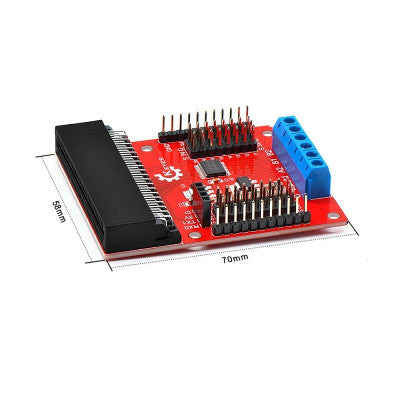

- Size: 70mm*58mm
- Weight: 37gm
Features:
- Four motor control modes: Forward/Reverse/Brake/Stop

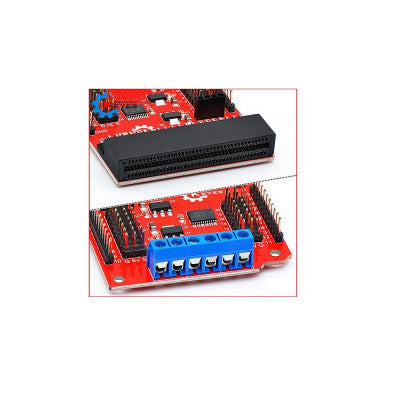

- Access to 3Pin headers connection
- Integrated with 3.3V and 5V voltage-regulator chip
- Comes with serial port communication pins
The BBC micro:bit is a powerful handheld, fully programmable computer designed to encourage children to get involved in coding and electronics. It features a 55 LED Matrix, two push buttons, a compass, Accelerometer, and Bluetooth. It supports the PXT graphical programming interface developed by Microsoft and is compatible with various operating systems.

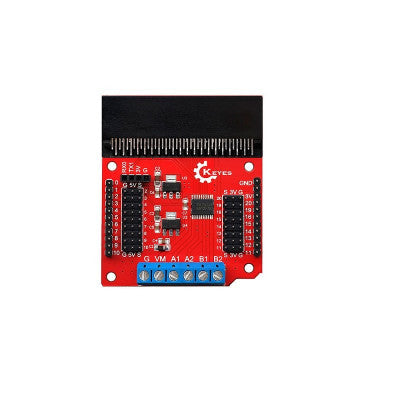

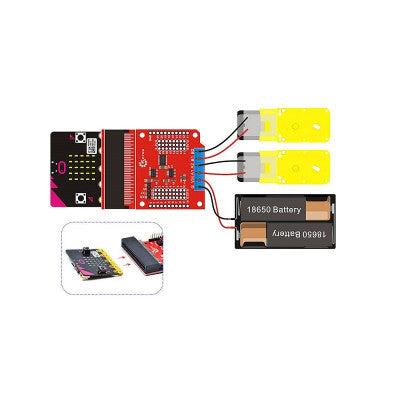

Looking to do more with your BBC micro:bit? Unlock its potential with this motor drive breakout board that integrates the TB6612FNG chip. Each channel can output up to 1.2A continuous drive current, with peak current up to 2A/3.2A. The board breaks out the micro:bit pins to 3PIN headers for easy circuit connections using jumper wires. It also includes a 3.3V and 5V voltage-regulator chip and serial port communication pins.
*Images are for illustration only; actual product may vary.
