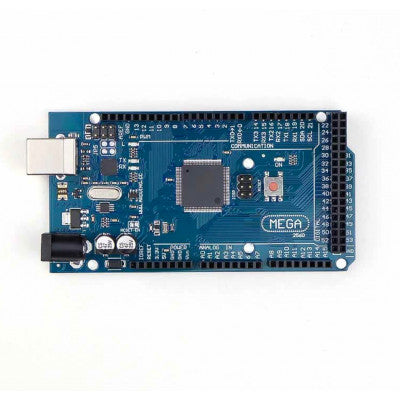

Mega 2560 R3
An open source microcontroller board with enhanced features
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (15 PWM)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB (8 KB used by bootloader)
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
- USB Host Chip: MAX3421E
- Length: 101.98mm/4.01in
- Width: 53.63mm/2.11in
- Height: 15.29mm/0.60in
Top Features:
- 54 digital I/O pins with PWM
- 16 analog input pins
- USB connection for easy interfacing
- Compact design with ICSP header
The Mega 2560 R3 is a precise microcontroller board that is a successor to the Mega, based on the ATmega2560 SMD chip. It comes with additional pins such as SDA and SCL, along with new pins for future use. With 4 UARTs, a 16 MHz crystal oscillator, and compatibility with most shields designed for Genuino Uno, this board is ideal for robotics, DIY kits, and projects requiring high-speed processing.
It works seamlessly with existing shields and can adapt to new shields utilizing the extra pins. Powering the board is simple, just connect it to a computer via USB or use a DC adapter or battery. Experience hassle-free microcontroller support with the Mega 2560 R3.
* Images are for illustration only; actual product may vary.
