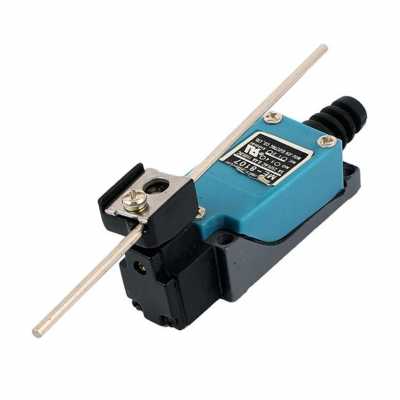

ME-8107 Rotary Adjustable Roller Mini Limit Switch
A versatile limit switch for electrical control in various industries.
- Model: ME-8107
- Action Type: Momentary
- Contact Type: DPST
- Contact Configuration: 1 NC + 1 NO
- Mounting Hole Spacing: 56 x 21mm
- Rating: AC 250V/5A DC 115V/0.4A
- Rod Length: 140mm
- Cable Entry Diameter: 6mm
Features:
- Actuator action: momentary
- Rotary adjustable lever arm with a roller
- Contact configuration 1 NC + 1 NO
- Adjustable Rod Arm actuator type
The ME-8107 Rotary Adjustable Roller Mini Limit Switch, also known as the POSITION SWITCH, is a commonly used small current main electrical appliance. The contact action is realized through the collision of the moving parts of production machinery or segmented control circuit to achieve a certain control target. Perfect for electrical control switches in mechanical and other industries. This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plants. Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.
* Images are for illustration only; actual product may vary.
