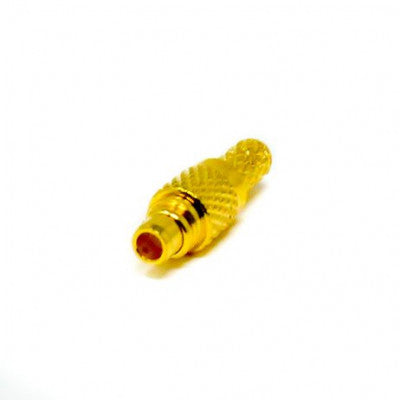

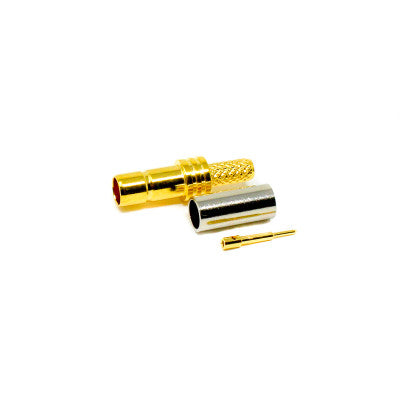

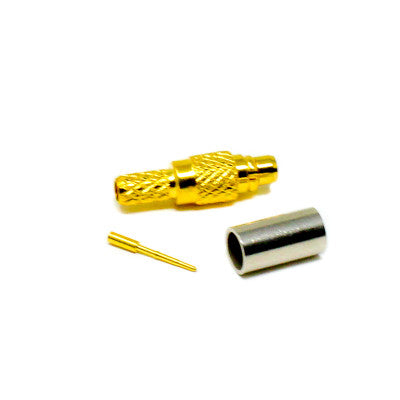

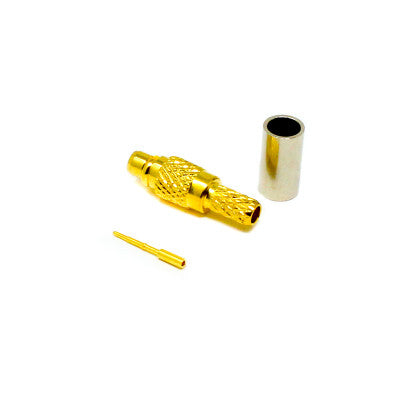

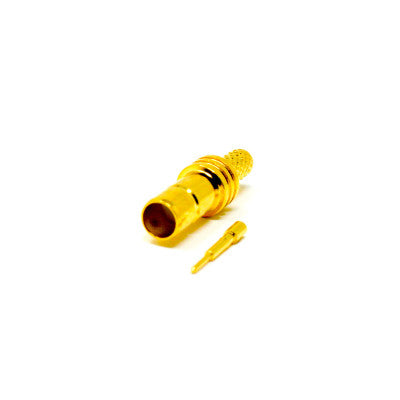

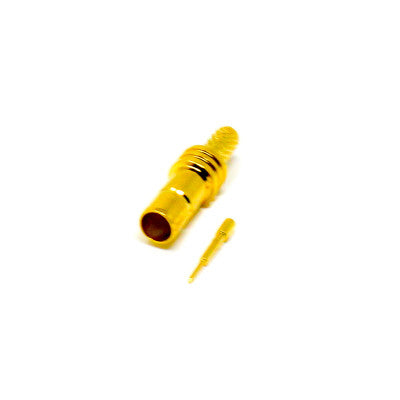

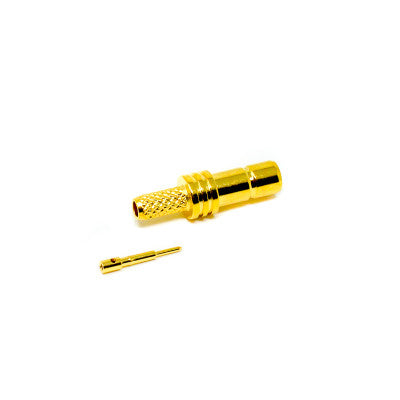

MCX RF Connector Male Straight Gold Plated Crimp
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and perfect design.
- Brand: ElecBee
- Orientation: Straight
- Gender: Male
- Mounting Type: Cable
- Termination Style: Crimp Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Copper Alloy
- Body Plating: Gold Plating
- Impedance: 50 ohms
- Shield Termination: Crimp
Top Features:
- 30% smaller than SMB with same contact and insulator size
- Snap-on Interface for quick installation
- High cost-effective with excellent broadband performance
- Impedance: 50 ohm
Main Application of MCX Connectors: Consumer Electronics, Aerospace and Defense, Medical, Telecommunications, Data/Communications, Industrial.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0-6GHz
- VSWR: Straight type: 1.25 max
- Dielectric Withstanding Voltage: 1000 V rms
- Working Voltage: <170V rms
- Center Contact Resistance: 5mohm
- Outer Contact Resistance: 2.5mohm
- Insulation Resistance: 5000 ohms min
Mechanical Characteristics:
- Coupling: Snap-on/Snap-off
- Contact Retention: 4 lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
- Environmental Characteristics: Teflon -65C ~ +165C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x MCX RF Connector Male Straight Gold Plated Crimp for Cable
*Images are for illustration only; actual product may vary.*
