MCP3301 13-bit A/D Converter
Full differential inputs and low power consumption for battery powered systems
- Spec name: 13-bit resolution
- Spec name: ±1 LSB max DNL (MCP3301-B), ±2 LSB max DNL (MCP3301-C)
- Spec name: ±1 LSB max INL (MCP3301-B), ±2 LSB max INL (MCP3301-C)
- Spec name: Full differential inputs
- Spec name: Single supply operation: 2.7V to 5.5V
- Spec name: 100 ksps sampling rate with 5V supply voltage
- Spec name: 50 ksps sampling rate with 2.7V supply voltage
- Spec name: Industrial temp range: -40°C to +85 °C
- Spec name: 8-pin MSOP, PDIP and SOIC packages
Top Features:
- Full Differential Inputs
- Low Power Consumption
- Industry-Standard SPI™ Serial Interface
- Wide Input Voltage Range
Incorporating a successive approximation architecture, the MCP3301 A/D converter is ideal for battery powered systems and remote data acquisition applications. With ±1 LSB Differential Nonlinearity (DNL) and ±1 LSB Integral Nonlinearity (INL) for B-grade devices, it ensures high accuracy in signal conversion. The SPI™ serial interface allows seamless integration with PIC® microcontrollers.
Operating with typical standby and active currents of only 50 nA and 300 µA, respectively, this device offers low power consumption, making it suitable for portable instrumentation and battery-operated applications. The MCP3301 has a broad voltage range of 2.7V to 5.5V and can achieve conversion rates of up to 100 ksps. The reference voltage can be adjusted from 400 mV to 5V, providing flexible input-referred resolution.
With full differential inputs, the MCP3301 supports a wide range of signals, enabling its use in various applications like remote data acquisition. Available in 8-pin PDIP, 150 mil SOIC, and MSOP packages, this A/D converter is a versatile solution for precision signal processing.

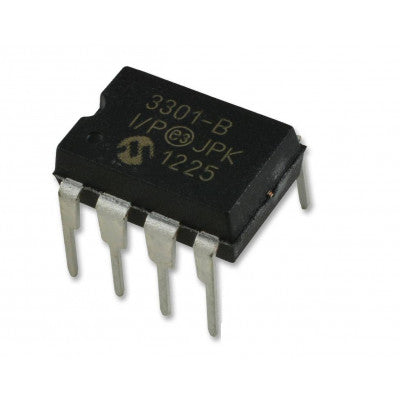

- Pack/Unit: 1 x MCP3301 13-bit A/D Converter
**Images are for illustration only; actual product may vary.**
