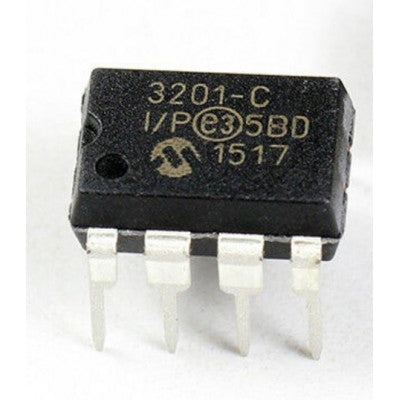

Microchip Technology Inc. MCP3201 12-Bit ADC
Successive approximation ADC with SPI interface and low power consumption
- Resolution: 12-bit
- Differential Nonlinearity (DNL): ±1 LSB
- Integral Nonlinearity (INL - MCP3201-B): ±1 LSB
- Integral Nonlinearity (INL - MCP3201-C): ±2 LSB
- Input: Single pseudo-differential
- Sample Rates: Up to 100 ksps @ 1.6 MHz clock
- Voltage Range: 2.7V - 5.5V
- Current Consumption: 500 nA standby, 300 µA active
Features:
- 12-bit resolution
- On-chip sample and hold
- SPI serial interface (modes 0,0 and 1,1)
- Single supply operation: 2.7V - 5.5V
The MCP3201 is a 12-bit ADC with on-board sample and hold capability. It features a simple SPI interface and offers low power consumption with standby and active currents of 500 nA and 300 µA, respectively.
Operating over a wide voltage range of 2.7V to 5.5V, this ADC provides accurate conversion with DNL and INL specifications. The device is available in various package options including 8-pin MSOP, PDIP, TSSOP, and 150 mil SOIC.
- Voltage Range (VDD): 7.0V
- I/O Voltage Limits: -0.6V to VDD +0.6V
- Storage Temperature: -65°C to +150°C
- Ambient Temperature Range: -65°C to +125°C
- Soldering Temperature (10 sec): +300°C
- ESD Protection (HBM): ? 4 kV
For more technical details, refer to the MCP3201 IC Datasheet.
Images are for illustration only; actual product may vary.
