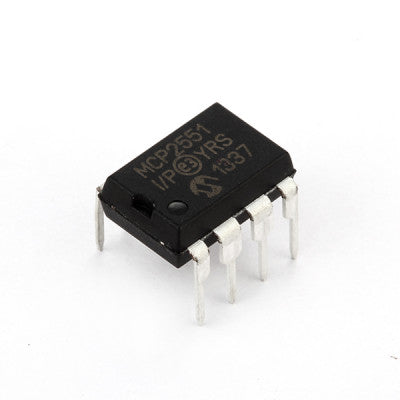

MCP2551 High-Speed CAN Transceiver
A high-speed, fault-tolerant interface for CAN protocol controllers.
- Spec name: MCP2551 High-Speed CAN Transceiver
- Supports: up to 1 Mb/s operation
- ISO Standard: ISO-11898 compatibility for 24V systems
- Input Voltage: 7V
- Slope Control: Reduced RFI emissions
- Ground Fault Detection: Permanent dominant on TXD input
- Thermal Protection: Automatic shutdown for safety
Features:
- Supports 1 Mb/s operation
- ISO-11898 standard compliance
- Compatible with 12V and 24V systems
- Ground fault detection on TXD input
The MCP2551 is a high-speed CAN fault-tolerant device that acts as the intermediary between a CAN protocol controller and the physical bus. It offers differential transmit and receive capabilities for the controller and is fully compatible with the ISO-11898 standard, including 24V systems. Operating at speeds of up to 1 Mb/s, it ensures each node in a CAN system can convert digital signals generated by a CAN controller for suitable transmission over the bus cabling in a differential output format. Additionally, it provides a buffer between the controller and high-voltage spikes that may occur on the CAN bus due to external sources such as EMI, ESD, or electrical transients.
- Spec name: Virtual Junction Temperature
- Value: -40°C to +150°C
**Images are for illustration only; actual product may vary.**
