MC3486 Quadruple Differential Line Receiver
A monolithic receiver designed to meet ANSI Standards and ITU Recommendations.
- Supply voltage: 4.75V - 5.25V
- Common-mode input voltage Max: +7V
- Differential input voltage Max: +6V
- High-level enable input voltage Min: 2V
- Low-level enable input voltage Max: 0.8V
- Operating free-air temperature Max: 70°C

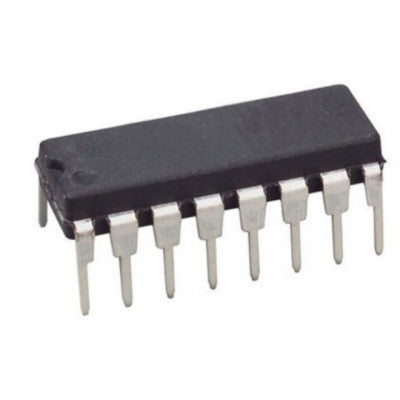

- Package Includes: 1 X MC3486 Quadruple Differential Line Receiver with 3-State Outputs IC DIP-16 Package
Features:
- Meets ANSI Standards EIA/TIA-422-B and EIA/TIA-423-B
- 3-State, TTL-Compatible Output
- Fast Transition Times
- Operates From Single 5-V Supply
The MC3486 is a monolithic quadruple differential line receiver designed to meet the specifications of ANSI Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU Recommendations V.10 and V.11. It offers four independent differential-input line receivers with TTL-compatible outputs. The outputs utilize 3-state circuitry to provide a high-impedance state at any output when the appropriate output enable is at a low logic level. The MC3486 is designed for optimum performance when used with the MC3487 quadruple differential line driver. It is supplied in a 16-pin package and operates from a single 5-V supply. The MC3486 is characterized for operation from 0°C to 70°C.
