MC34262 Active Power Factor Controller
Active power factor controller for electronic ballast and offline power converter applications.
- Total Power Supply and Zener Current (ICC + IZ): 30 mA
- Output Current, Source or Sink: 500 mA
- High State Forward Current: 50 mA
- Low State Reverse Current: -10 mA
- Maximum Power Dissipation @ TA = 70°C: 800 mW
- Operating Junction Temperature: 150 °C
- Operating Ambient Temperature: 0 to +85 °C
- Storage Temperature Range: -65 to +150 °C
- Human Body Model (HBM), Machine Model (MM), Charged Device Model (CDM) ESD: 2000, 200, 2000 V
Features:
- Overvoltage Comparator Eliminates Runaway Output Voltage
- Internal Startup Timer
- One Quadrant Multiplier
- Zero Current Detector
The MC34262 is an active power factor controller designed for use as a preconverter in electronic ballasts and offline power converter applications. It features an internal startup timer for standalone operation, a one quadrant multiplier for near unity power factor, zero current detector for critical conduction, and a transconductance error amplifier. Additionally, it includes a quickstart circuit for enhanced startup, an internal bandgap reference, current sensing comparator, and a totem pole output for driving power MOSFETs.

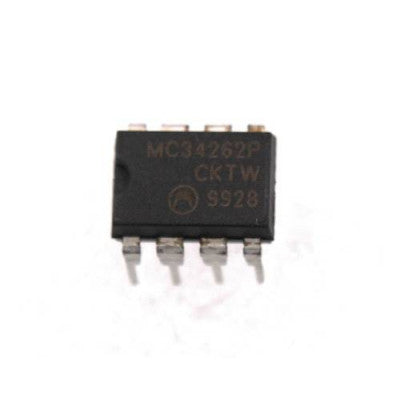

Protective features like an overvoltage comparator, input undervoltage lockout, cycle-by-cycle current limiting, and more ensure safe and reliable operation. The device comes in a dual-in-line plastic package and supersedes the functionality of SG3561 and TDA4817. It is Pb-Free and Halide-Free for environmental compliance.
For more details or bulk pricing, reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
* Images are for illustration only; actual product may vary.
