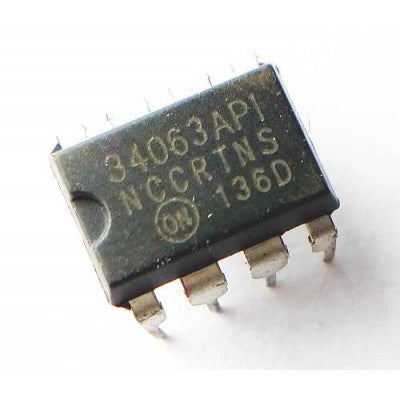

MC34063A Series Monolithic Control Circuit
A compact powerhouse for DC-to-DC converters
The MC34063A Series is a monolithic control circuit containing the primary functions required for DC?to?DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver, and high current output switch. This series was specifically designed to be incorporated in Step?Down and Step?Up and Voltage?Inverting applications with a minimum number of external components.
- Features:
- Operation from 3.0 V to 40 V Input
- Low Standby Current
- Current Limiting Output
- Switch Current to 1.5 A
- Output Voltage Adjustable
- Frequency Operation to 100 kHz
- Precision 2% Reference
- Compliant with AEC-Q100 and RoHS
- Specifications:
- Power Supply Voltage VCC: 40 Vdc
- Comparator Input Voltage Range VIR : ?0.3 to +40 Vdc
- Switch Collector Voltage VC(switch): 40 Vdc
- Switch Emitter Voltage VE(switch): 40 Vdc
- Switch Collector to Emitter Voltage VCE(switch): 40 Vdc
- Driver Collector Voltage VC(driver): 40 Vdc
- Driver Collector Current IC(driver): 100 mA
- Switch Current ISW : 1.5 A
- Power Dissipation PD: 1.25 W
- Operating Junction Temperature Tj: 150 °C
- Operating Ambient Temperature Range Ta: 0 to +70 °C
- Storage Temperature Range Tstg: ?65 to +150 °C
Related Document: MC34063 IC Data Sheet
