MC34002 JFET Input Operational Amplifiers
State-of-the-art operational amplifiers with JFET input
- Power Supply Voltage: +18V
- Differential Input Voltage: +30V
- Input Voltage Range: +16V
- Operating Ambient Temperature Range: 0 to +70°C
- Operating Junction Temperature: 150°C
- Storage Temperature Range: –65 to +150°C

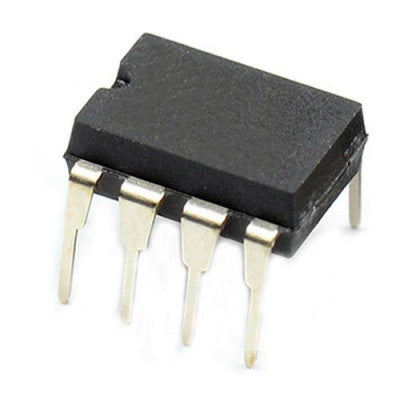

- Package Includes: 1 X MC34002 JFET Input Operational Amplifiers IC DIP-8 Package
Top Features:
- Input Offset Voltage Options of 5.0 mV and 10 mV Maximum
- Low Input Bias Current: 40 pA
- Wide Gain Bandwidth: 4.0 MHz
- High Slew Rate: 13 V/µs
These low-cost JFET input operational amplifiers combine two state-of-the-art analog technologies on a single monolithic integrated circuit. Each internally compensated operational amplifier has well-matched high voltage JFET input devices for low input offset voltage. The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents, and supply currents. The Motorola BIFET family offers single, dual, and quad operational amplifiers which are pin-compatible with the industry standard MC1741, MC1458, and the MC3403/LM324 bipolar devices. The MC34001/34002/34004 series are specified from 0° to 70°C.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
