MC33272 Series Monolithic Operational Amplifiers
Quality operational amplifiers with innovative Bipolar design concepts
- Input Offset Voltage: Trimmed to 100 V (Typ)
- Input Bias Current: 300 nA
- Input Offset Current: 3.0 nA
- Input Resistance: 16 M
Top Features:
- Low input bias and offset current
- High gain bandwidth product
- Low noise at 1.0 kHz
- High slew rate of 10 V/s
The MC33272 series of operational amplifiers incorporates Bipolar inputs with a patented Zip?R?Trim element for input offset voltage reduction. These amplifiers exhibit low input offset voltage, high gain bandwidth product, and utilize dual doublet frequency compensation to increase slew rate while maintaining low input noise characteristics. The all NPN output stage ensures no dead band crossover distortion, large output voltage swing, and excellent phase and gain margin. Additionally, it provides low open-loop high-frequency output impedance with symmetrical source and sink AC frequency performance.
- Power Supply Voltage: +36V
- Maximum Junction Temperature: +150°C
- Storage Temperature: -65 to +150°C
- Operating Temperature Range: -40 to +85°C

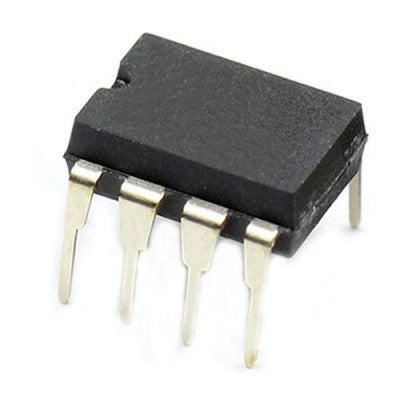

- Package Includes: 1 X MC33272 Operational Amplifiers Single Supply High Slew Rate Low Input Offset Voltage IC DIP-8 Package
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
