MC33202 Low Voltage Rail-to-Rail Operational Amplifiers
Rail-to-rail operation with high output current capability and low noise for audio applications.
- Power Supply Voltage: +13V
- Maximum Junction Temperature: +150°C
- Common Mode Input Voltage Range: VCC + 0.5 V to VEE - 0.5 V
- Storage Temperature: -65 to +150°C

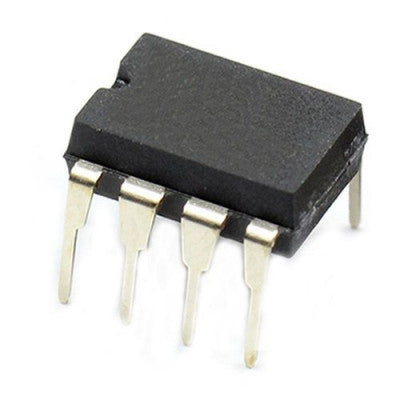

- Package Includes: 1 X MC33202 Low Voltage Rail-to-Rail Operational Amplifiers IC DIP-8 Package
Features:
- Low Voltage, Single Supply Operation
- Output Voltage Swings within 50 mV of both Rails
- No Phase Reversal on the Output for Over-driven Input Signals
- High Output Current (ISC = 80 mA, Typ)
The MC33202 family of operational amplifiers provide rail-to-rail operation on both the input and output. The inputs can be driven as high as 200 mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables the user to make full use of the supply voltage range available. It is designed to work at very low supply voltages (± 0.9 V) yet can operate with a supply of up to +12 V and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Also, the combination of low noise and distortion with a high slew rate and drive capability make this an ideal amplifier for audio applications.
