MC33174 Low Power Quad Bipolar Operational Amplifiers
Quad bipolar operational amplifier with low consumption and good speed
- Power Supply Voltage: +22V
- Operating free-air temperature range: 40 to 105°C
- Junction Temperature: 150°C
- Storage Temperature: -65 to 150°C

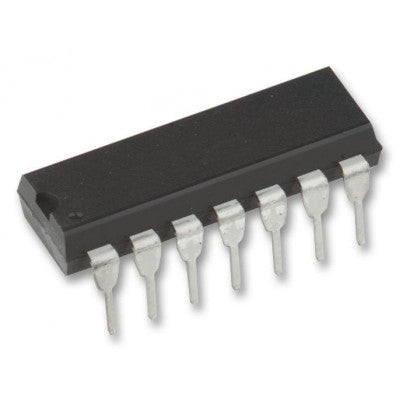

- Package Includes: 1 X MC33174 Low Power Quad Bipolar Operational Amplifiers IC DIP-14 Package
Features:
- Low consumption (200µA) and good speed (2.1MHz, 2V/µs)
- Single (or dual) supply operation from +4V to +44V (±2V to ±22V)
- Wide input common mode voltage range including VCC
- Low level output voltage close to VCC: 100mV typical
The MC33174 series are quad bipolar operational amplifiers offering both low consumption (200µA) and good speed (2.1MHz, 2V/µs). The Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.
PIN TO PIN COMPATIBLE WITH STANDARD QUAD OP-AMPs.
