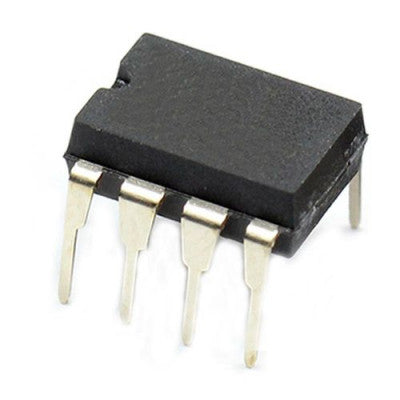

MC33153 IGBT Driver
An efficient driver for high-power IGBT applications.
- Power Supply Voltage: 20V
- Logic Input: -0.3V to 20V
- Current Sense Input: -0.3V to 20V
- Blanking/Desaturation Input: -0.3V to 20V
- Gate Drive Output-Source Current: 1A
- Fault Output-Source Current: 25mA
- Maximum Power Dissipation @ TA = 50°C: 0.56W
- Operating Junction Temperature: 150°C
- Operating Ambient Temperature: -40 to +105°C
- Storage Temperature Range: -65 to +150°C
- ESD (HBM, MM, CDM): 2500V, 250V, 1500V
- High Current Output Stage.
- Protection Circuits for Both IGBT Types.
- Programmable Fault Blanking Time.
- Protection against Overcurrent and Short Circuit.
The MC33153 is a specialized IGBT driver suitable for tasks like ac induction motor control, brushless DC motor control, and uninterrupted power supplies. It excels in driving discrete and module IGBTs, while also providing a cost-effective solution for power MOSFETs and Bipolar Transistors. Offering features like desaturation or overcurrent sensing and undervoltage detection, it ensures device protection. Available in dual-in-line and surface mount packages, this Pb-Free and Halide-Free device is optimized for IGBTs and has a negative gate drive capability.
