MC33151 Dual Inverting High Speed Drivers
Dual inverting drivers for low current digital circuitry driving large capacitive loads.
- Power Supply Voltage: 20V
- Logic Inputs: -0.3 to VCC
- Totem Pole Sink or Source Current: 1.5A
- Maximum Power Dissipation @ TA = 50°C: 0.56W
- Operating Junction Temperature: 150°C
- Operating Ambient Temperature: 0 to 70°C
- Storage Temperature Range: -60 to 150°C
- ESD - Human Body Model (HBM), Machine Model (MM), Charged Device Model (CDM): 2000, 200, 1500
- Pack/Unit: Dual-in-line or surface mount
Top Features:
- 1.5A Totem Pole Output
- 15 ns Rise and Fall Times
- CMOS/LSTTL Compatible Inputs
- Undervoltage Lockout with Hysteresis
The MC33151 is designed for applications like switching power supplies, DC-DC converters, voltage doublers/inverters, and motor controllers. With low input current and hysteresis for fast output switching, it is ideal for driving power MOSFETs.
Its enhanced system performance and compatibility with common switching regulator control ICs make it a versatile choice for various electronic projects.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.

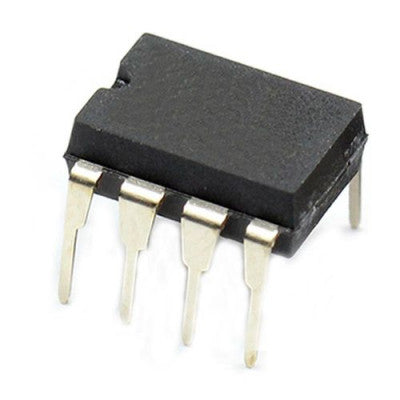

*Images are for illustration only; actual product may vary.
