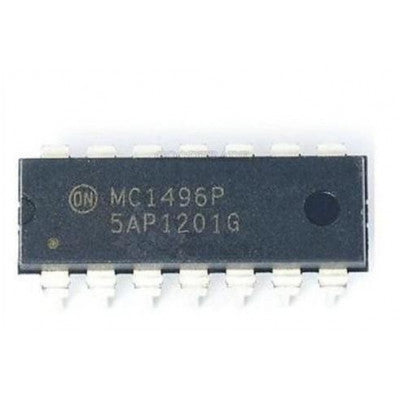

MC1496 Analog Multiplier IC
Designed for amplitude modulation, synchronous detection, and more.
- Applied Voltage: 30 V
- Differential Input Signal: 5 V
- Maximum Bias Current: 10 mA
- Thermal Resistance: Junction-to-Air 100 °C/W
- Operating Ambient Temperature Range: 0 to +70°C
- Storage Temperature Range: -65 to +150°C
- Human Body Model (HBM), Machine Model (MM): 2000V, 400V
- Packaging: Pb-Free Available
Key Features:
- Excellent Carrier Suppression: ?65 dB @ 0.5 MHz, ?50 dB @ 10 MHz
- Adjustable Gain and Signal Handling
- High Common Mode Rejection: ?85 dB Typical
- Balanced Inputs and Outputs
These devices are ideal for applications like suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications. For detailed design information, refer to the ON Semiconductor Application Note AN531.
For more technical details, please consult the MC1496 IC Data Sheet.
Images are for illustration only; actual product may vary.
