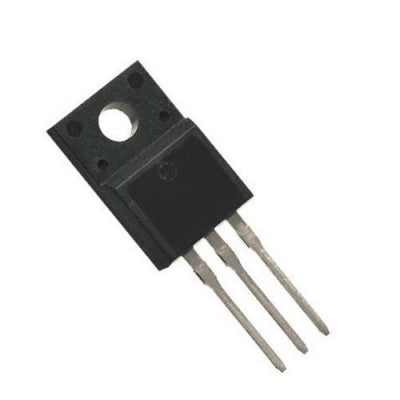

MRB20200CT Schottky Barrier Rectifier
High-frequency switching power supply rectifier with up to 200V blocking voltage
- Peak Repetitive Reverse Voltage: 200 V
- Working Peak Reverse Voltage: 200 V
- DC Blocking Voltage: 200 V
- Non-Repetitive Peak Forward Surge Current: 150 A
- Operating Junction Temperature Range: -65 to +175 °C
- Storage Temperature Range: -65 to +150 °C
- Maximum Average Forward Rectified Current: 10, 20 A
- Packaging: 50 units per plastic tube
Top Features
- 200 Volt Blocking Voltage
- Low Forward Voltage Drop
- Guarding for Stress Protection
- High dv/dt Capability (10,000 V/µs)
The MRB20200CT utilizes Schottky Barrier technology with a platinum barrier metal, perfect for high frequency switching power supplies and converters up to 48 volts. It offers improved Schottky performance within a frequency range of 250 kHz to 5.0 MHz.
Mechanical Characteristics:
- Case: Epoxy, Molded
- Weight: 1.9 grams (approximately)
- Finish: Corrosion Resistant
- Terminal Leads: Readily Solderable
- Lead Temperature for Soldering: 260°C Max. for 10 Seconds
- Marking: B20200
For parallel operation at full rating, terminals 1 and 3 must be connected. Refer to the MBR20200CT Rectifier Data Sheet for more details.
Images are for illustration only; actual product may vary.
